Modular Cooking Range Line thermaline 90 - Full Module Freestanding Electric Fry Top, 1 Side, H=700 - H3 -Marine (COD 589839)
Where to buy
Fry Tops - 2 Zones - Electric

Modular Cooking Range Line

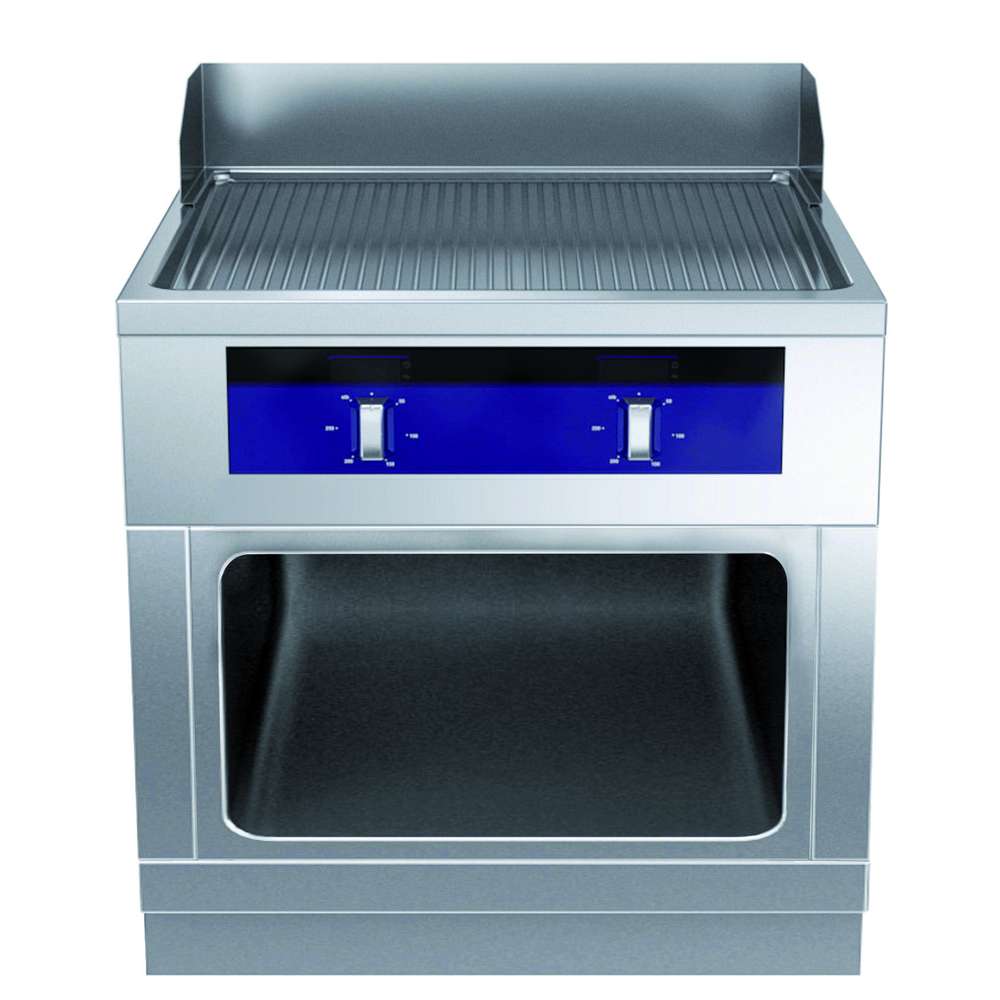

thermaline 90 - Full Module Freestanding Electric Fry Top, 1 Side, H=700 - H3 -Marine

COD 589839

Electric Fry Top with ribbed chrome Plate, one-side operated - H3 - Marine

Specifications

  • Supply voltage: 440 V/3 ph/50/60 Hz

    Total Watts: 15.3 kW

  • Cooking Surface Depth: 615 mm

    Cooking Surface Width: 700 mm

    Working Temperature MIN: 80 °C

    Working Temperature MAX: 280 °C

    External dimensions, Width: 800 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 700 mm

    Storage Cavity Dimensions (width): 580 mm

    Storage Cavity Dimensions (height): 330 mm

    Storage Cavity Dimensions (depth): 740 mm

    Net weight: 150 kg

    Configuration: On Base;One-Side Operated

    Cooking surface type: Ribbed

    Cooking surface - material: Chromium Plated mild steel mirror

  • Current consumption: 20 Amps

Product Features

Main Features

Large drain hole on cooking surface permits the draining of residual cooking juices into a large collector placed under the cooking surface.
Large visible digital display manufactured in tempered glass to resist heat and chemicals, showing temperatures or power settings. The display also shows on/off status of the appliance and on/off status of the heating elements.
Powerblock heating system for optimal temperature distribution.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.
All major components may be easily accessed from the front.
Stainless steel high splash guards on the rear and sides of cooking surface.
Units have separate controls for each half module of the cooking surface.
Overheat protection: a temperature sensor switches off the supply in case of overheating.
Choice of one or two heating zones. An indicator lamp shows operating state of each zone.

Sustainability

Standby function for energy saving and fast recovery of maximum power.

Construction

IPX5 water resistance certification.
Cooking surface in chromium-plated mild steel with non-stick finishing for optimum grilling results.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.
Flat surface construction with minimal hidden areas to easily clean all surfaces
2 mm top in 1.4301 (AISI 304).
Internal frame for heavy duty sturdiness in stainless steel.
Cooking surface to be completely smooth or completely ribbed.

Detergents and Chemicals (not included)

Code
Description
Code: 0S2292
C41 HI-TEMP RAPID DEGREASER, 1 pack of six 1 lt. bottles (trigger incl.)
