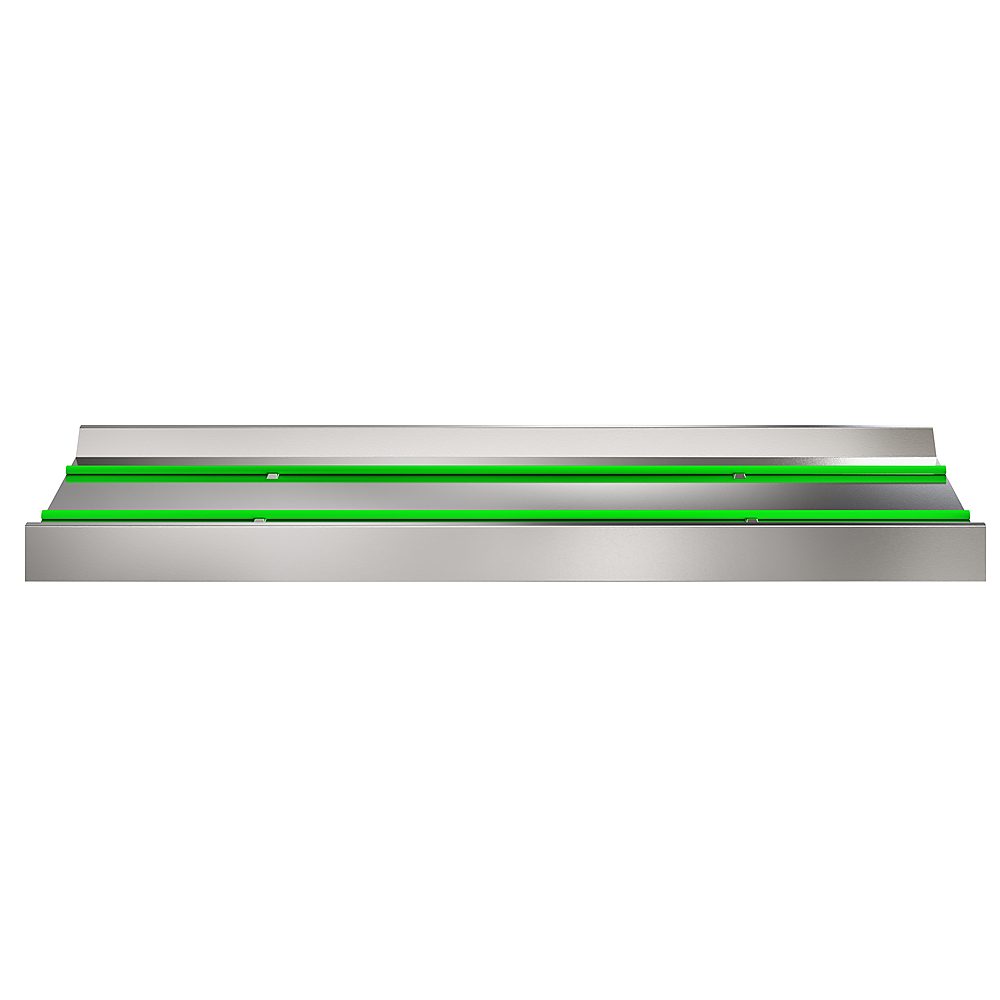

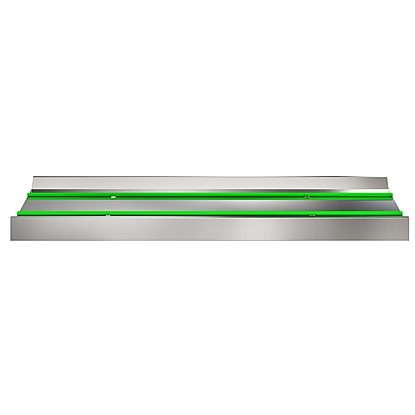

Handling System for Rack Type Cord Conveyor for Trays - 1600/1700/1800mm (COD 863182)

Compare Where to buy

Handling System for Rack TypeCord Conveyor for Trays - 1600/1700/1800mm

Cord conveyors for trays

Handling System for Rack Type
Cord Conveyor for Trays - 1600/1700/1800mm

COD 863182

Cord conveyor for trays, 1700 mm

Compare

Where to buy

Specifications

Key Information

External dimensions, Width: 1700 mm

External dimensions, Depth: 460 mm

External dimensions, Height: 110 mm

Net weight: 16 kg

Height adjustment: 0/0 mm

Basin material:

Documents

Data Sheet

Cord Conveyor for Trays - 1600/1700/1800mm

(131,22 KB)

Product Features

Main Features

Available as optional accessory a remote easy-to reach emergency-stop buttons fitted where required.

No legs included.

Range allows a large number of conveyor combinations.

Wall mounted on request.

Maximum load 5 kg/m uniformally spread.

For distance longer than 3m: required additional pair of legs.

Construction

All surfaces smooth with polished finish.

S/S plain conveyor base for easy cleaning.

Constructed in AISI 304 1,5mm stainless steel.

15mm reinforced polyurethane cord, for smooth and easy running.

For trays up to 375x530mm.

Conveyors available with low edge on one side, to aid unloading when used as sorting unit.

Detergents and Chemicals (not included)


Code

Description

Code: 0S2092

C11 Detergent for dishwashers; one pack of 2 cans of 5lt.

Code: 0S2093

C13 ECO Detergent for dishwashers; one pack of 2cans of 5lt.

Code: 0S2094

C12 Rinse aid for dishwashers; one pack of 2 cans of 5lt.

Code: 0S2281

C11 Detergent for dishwashers; 1 can of 20lt.

Code: 0S2362

C30 Multipurpose descaler; one pack of 2 cans of 5lt.

Code: 0S2904

C15 ECO Rinse aid for dishwashers; one pack of 2 cans of 5lt.
