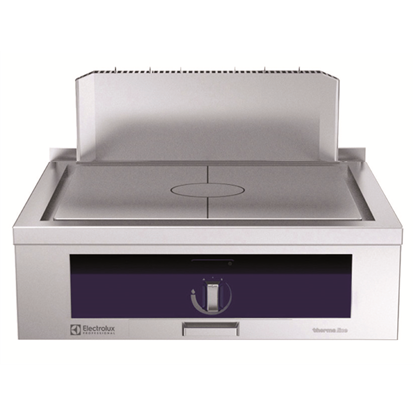

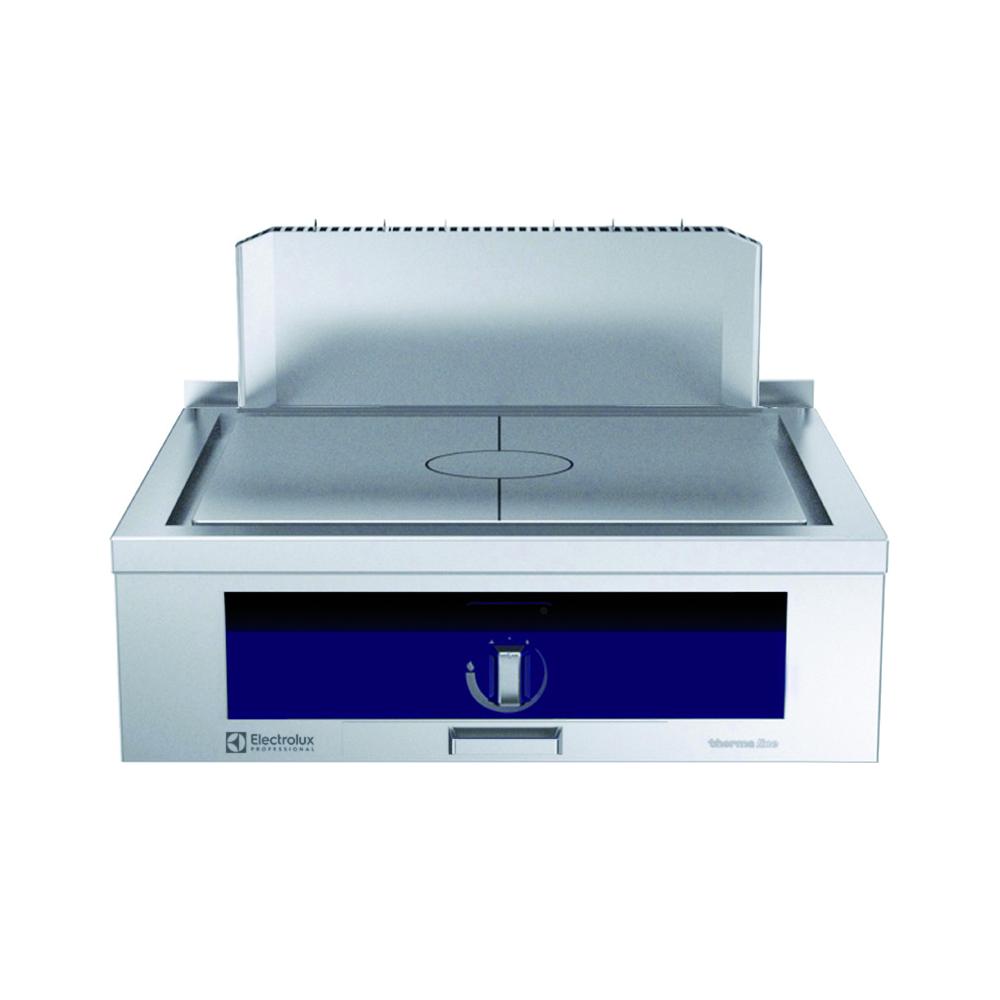

Modular Cooking Range Line thermaline 90 - Gas French Top, 1 Side with Backsplash (Town Gas) (COD 593342)

Compare Where to buy

French Tops

Modular Cooking Range Line
thermaline 90 - Gas French Top, 1 Side with Backsplash (Town Gas)

COD 593342

Gas French Top, one-side operated with backsplash, town gas

Compare

Where to buy

Specifications

Gas

Gas Power: 10 kW

Gas Type Option:

Gas Inlet: 1/2"
Key Information

External dimensions, Width: 1000 mm

External dimensions, Depth: 900 mm

External dimensions, Height: 250 mm

Net weight: 120 kg

Configuration: One-Side Operated;Top

Solid top usable surface (width): 790 mm

Solid top usable surface (depth): 700 mm

Documents

Product Features

Durable cast iron cooking plate, easy to clean.

Central burner with optimized combustion, flame failure device and protected pilot light.

Pans can easily be moved from one area to another without lifting.

Safety thermostat and thermostatic control.

Various sizes of pans can be used at the same time due to large surface area with no intermediate sectors.

Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.

Electrical ignition powered by battery with thermocouple for added safety.

All major components may be easily accessed from the front.

THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.

The center of the plate can reach a maximum temperature of 550 °C while decreasing outwards.

IPx4 water protection.

Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).

2 mm top in 1.4301 (AISI 304).

Flat surface construction with minimal hidden areas to easily clean all surfaces

Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 70 mm recessed plinth.
