Digital Undercounter ecostore HP Concept Freezer Counter - 9x1/3 Drawers (R290) (COD 710366)
Where to buy
ecostore HP Concept Freezers Counters - 3 comp. - with top

Digital Undercounter
ecostore HP Concept Freezer Counter - 9x1/3 Drawers (R290)

COD 710366

9x1/3 drawer Freezer Counter, -22-15°C, AISI 304 (R290)

Specifications

  • ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001

  • Supply voltage: 220-240 V/1 ph/50 Hz

    Electrical power, max: 0.49 kW

    Defrost Power: 0.57 kW

    Plug type: CE-SCHUKO

  • Net Volume: 141 lt

    Door hinges:

    External dimensions, Width: 1799 mm

    External dimensions, Depth: 700 mm

    External dimensions, Height: 900 mm

    Internal Dimensions, Width: 1252 mm

    Internal Dimensions, Depth: 560 mm

    Internal Dimensions, Height: 550 mm

    Net weight: 140 kg

    Shipping volume: 1.5 m³

    Depth with doors open: 1110 mm

    Height adjustment: 0/0 mm

    Gross capacity: 440 lt

  • Control type: Digital

    Refrigeration power at evaporation temperature: -30 °C

    Min/Max internal humidity:

    Operating temperature min.: -15 °C

    Operating temperature max.: -22 °C

    Compressor power:

    Operating mode: Ventilated

    Insulation: 90 mm (Cyclopentane)

  • Current consumption: 3.3 Amps

    Refrigerant type: R290

    GWP Index: 3

    Refrigeration power: 569 W

    Refrigerant weight: 145 g

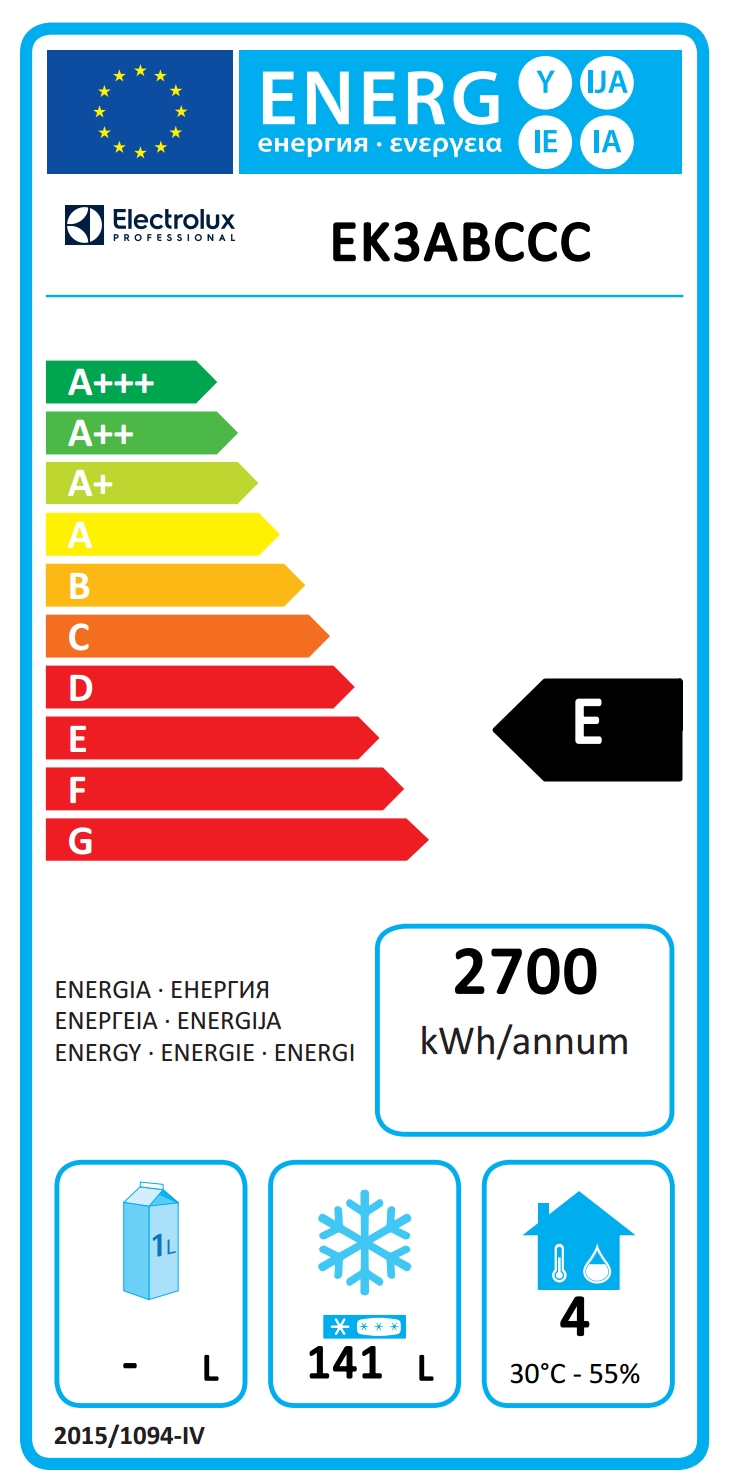

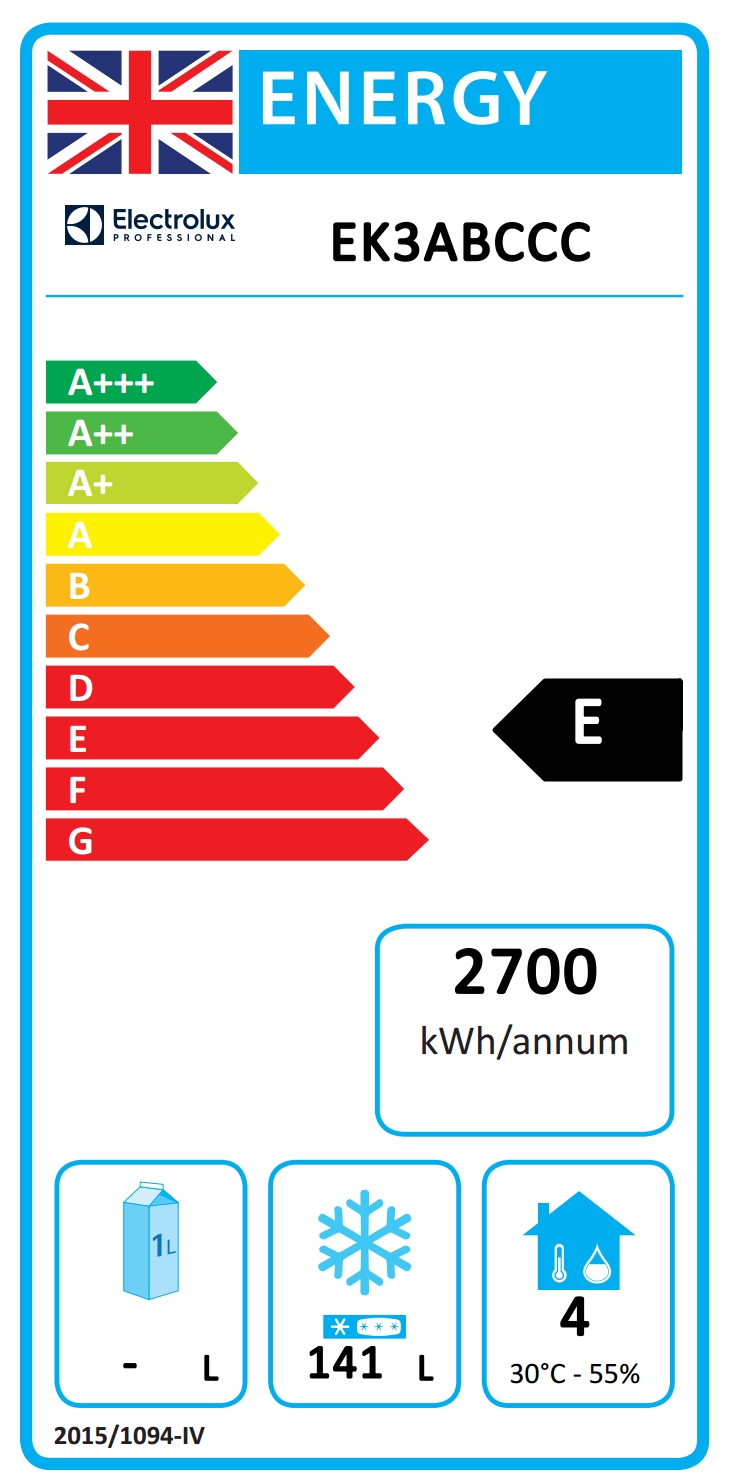

    Energy Class (EU Reg. 2015/1094): E

    Yearly and daily energy consumption (EU Reg. 2015/1094): 2700kWh/year - 7kWh/24h

    Climate class (EU Reg. 2015/1094): Normal duty (cl.4)

    Energy Efficiency Index-EEI (EU Reg. 2015/1094): 84,28

Product Features

Main Features

Anti-tilt runners accept GN 1/1 containers.
Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.
Forced air circulation for rapid cooling and an even temperature distribution.
Hot gas automatic evaporation of defrost water.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Self closing stainless steel doors (< 90°).
Frontal and easy access to all components in the cooling unit.
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Certified safety CE requirements.
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Adjustable temperature range from -15 °C to -22 °C to suit meat, fish and dairy storage requirements.
Freezer compartment designed to accept GN1/1 containers.
Combination of doors and drawers to suit varying needs, with the possibility to change the configuration on site.
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Digital control panel with temperature display.
Digital white-digit display with internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Easy serviceability thanks to the intuitive control panel with access via app.
Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Tropicalized unit.

Sustainability

CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).

Construction

External bottom panel in stainless steel.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Interior base with rounded corners, pressed from a single sheet.
Extractable cooling unit to facilitate maintenance.
Full stainless steel construction. Internal structure and worktop in AISI 304 Stainless steel.
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
Internal dimension of the drawers.
• models with 2 1/2 drawers: 1st drawer (top drawer) 203x302x521 / 2nd drawer 223x302x521 (HxWxD)
• models with 3 1/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd and 3rd drawers 118x302x521 (HxWxD)
• models with 1/3+2/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd drawer 333x302x521 (HxWxD)
Worktop in AISI 304 Stainless steel with a 50 mm profile.
Access to all components from the front.
Excellent space optimisation thanks to the compact dimensions.
External back panel in galvanized steel.
Anti-drip profile on stainless steel worktop edge.
Fault code display.
Mounted on Stainless steel adjustable legs to give 150 mm clearance for ease of cleaning.
Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.
Rounded internal corners for ease of cleaning.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
Built-in compressor to suit operating conditions.
Built-in refrigeration unit.
If needed, working top can be removed for easier handling during installation (in case of narrow doors).
Pre-arranged for drain-pipe.
