Electrolux Professional | Tailored and Complete Solutions to Make Your Food, Beverage, and Laundry Business Easier, More Profitable, and Sustainable
Cooking Line 14 lt Well Freestanding Electric Deep Fat Fryer, 1 Side - Marine USPHS only M2M (COD 588729)
Where to buy
Cooking Line14 lt Well Freestanding Electric Deep Fat Fryer, 1 Side - Marine USPHS only M2M
Deep Fat Fryers - Electric

Cooking Line

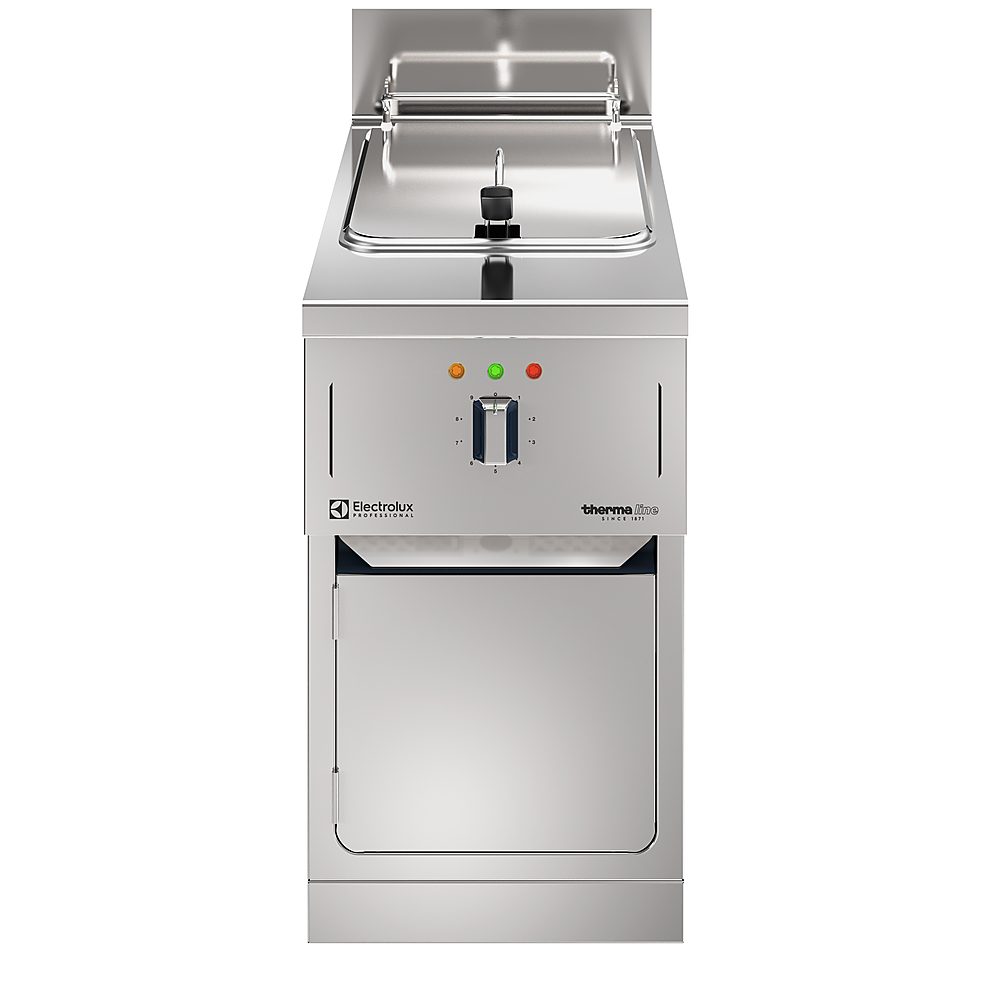

14 lt Well Freestanding Electric Deep Fat Fryer, 1 Side - Marine USPHS only M2M

COD 588729

14lt electric Deep Fat Fryer, one-side operated with splashback - Marine USPHS (only M2M)

Where to buy

Specifications

  • Supply voltage: 440 V/3 ph/60 Hz

    Total Watts: 10 kW

  • Number of wells: 1

    Usable well dimensions (width): 240 mm

    Usable well dimensions (height): 225 mm

    Usable well dimensions (depth): 380 mm

    Well capacity: 12 lt MIN; 14 lt MAX

    Thermostat Range: 100 °C MIN; 180 °C MAX

    External dimensions, Width: 400 mm

    External dimensions, Depth: 850 mm

    External dimensions, Height: 700 mm

    Net weight: 65 kg

    Configuration: On Base;One-Side Operated

  • Current consumption: 13.1 Amps

Product Features

Main Features

Deep drawn V-Shaped well.
Large overflow stamped area, located around the well.
External heating elements allow to easily clean the well.
Overheat protection: the temperature sensor switches off the supply in case of overheating.
Indirect oil heating system and uniform heat distribution to guarantee extended oil life.
All major components may be easily accessed from the front.
Reduced power setting to melt solid fat.
Oil level mark for MAX/MIN filling.
Designed for deep fat frying of meat, fish, specialities and vegetable (french fries, chips).
Oil can be drained off via a ball-valve with a lock to prevent unintentional opening. When opened, the ball valve provides a full cross-section opening to easily clean the drainage system.
Raised edge all around the well to protect from infiltration of dirt from worktop.
Electronic sensor for precise oil temperature control.
IPX6 water protection.

Equipped with fryer safety control.

Heavy-duty control knobs with a vertical metal insert and an integrated hygienic soft-touch grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.

Sustainability

Standby function for energy saving and fast recovery of maximum power.

Construction

Internal frame for heavy duty sturdiness in stainless steel.
3mm top with 3 mm reinforcement in 1.4301 (AISI 304).

Electronic control.

Potential-free alarm contact from the safety temperature limiter.

Built-in installation compliant with SOLAS regulations.

Also available with 400V / 3ph / 50/60 Hz.

Unit constructed according to DIN 18860_2 with 20 mm drop nose top.

Included Accessories

Quantity
Code
Description
Quantity: 1
Code: 921691
1 full size basket for 14/15lt fryers

Detergents and Chemicals (not included)

Code
Description
Code: 0S2292
C41 HI-TEMP RAPID DEGREASER, 1 pack of six 1 lt. bottles (trigger incl.)
Code: 0S2881
Code: 0S2882
S02 Degreaser. A highly concentrated detergent specifically for cleaning and removing grease from appliances and surfaces. Active up to a maximum of 50°C Complete with spray bottle. Pack of 6x750ml bottles
Code: 0S2883
Code: 0S2884
S04 Glasses & Hard Surfaces Cleaner, 6 x 750ml bottles
Code: 0S3257
