Handling System for Dishwasher Conveyor, long rollers with end plate (COD 863039)
Where to buy
Handling System for DishwasherConveyor, long rollers with end plate
Handling System for DishwasherConveyor, long rollers with end plate

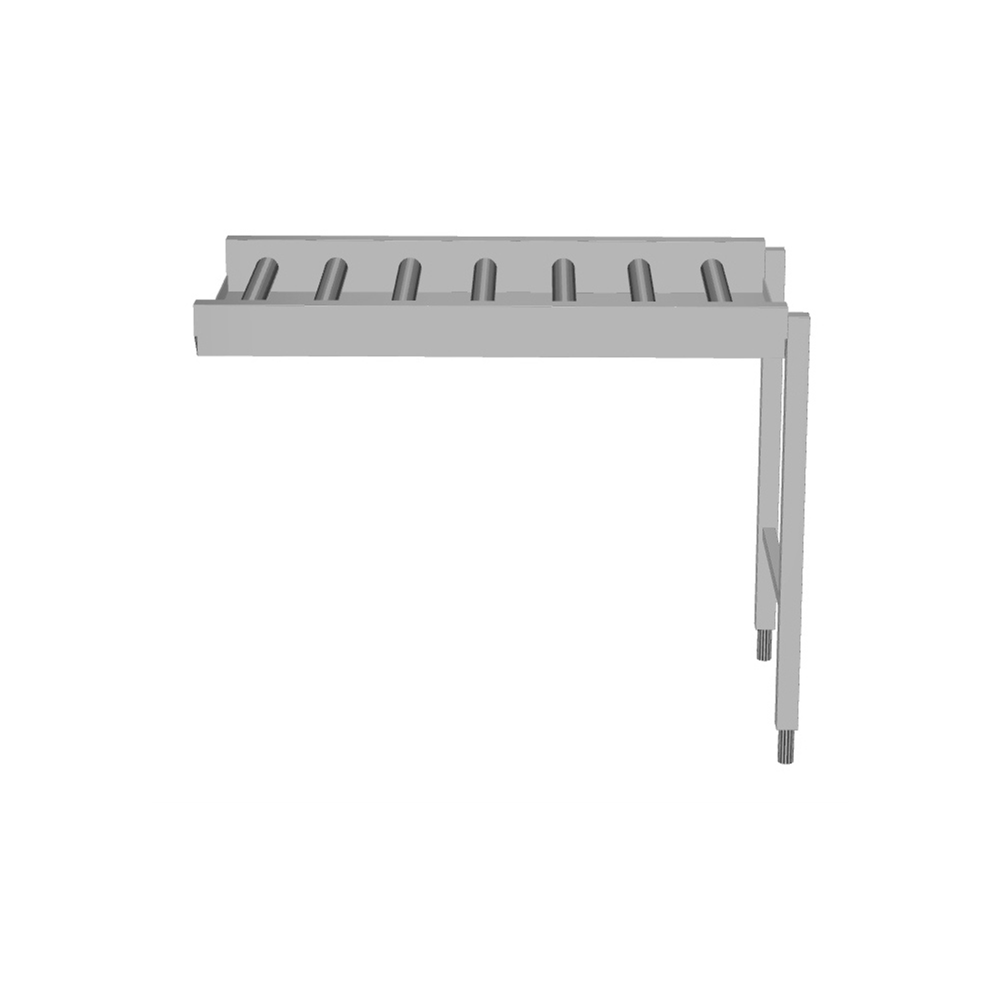

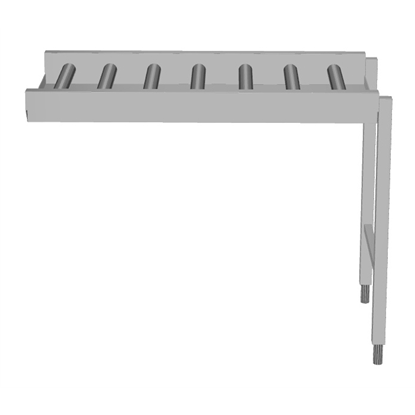

Long roller conveyor

Handling System for Dishwasher
Conveyor, long rollers with end plate

COD 863039

Conveyor, long rollers with end plate, 1245mm

Where to buy
Register your product

Specifications

  • External dimensions, Width: 1245 mm

    External dimensions, Depth: 620 mm

    External dimensions, Height: 910 mm

    Net weight: 18.95 kg

    Height adjustment: 50/50 mm

    Basin material: Stainless Steel AISI 304 - EN 1.4301

    Type of rollers: Long

Product Features

Main Features

Conveyors supplied as knockdown and easy to assemble.
Long roller conveyor is available form 1100 up to 2600mm with 100mm-step length.
The table is suitable for both rack type and hood type dishwasher. Rack type dishwasher can be connected directly to the table, while there are optional accessories to adapt the table with hood type dishwasher.
The table can be used on loading and/or unloading sides as the first or the last table in the working flow.
Manual rack movement with long rollers.
Suitable to install either a single unit with dishwasher or combined with other tables.
Improved end limit switch for easier cleaning and higher reliability.
"Key holes" and "snap on" system reduces the number of screws needed for fast and easy installation.
Designed to transport 500x500 mm dishwashing baskets.
Drain can be turned 360°.

Construction

All surfaces smooth with polished finish.
Thick welded flanges for sturdy connection between the units.
40x40mm stainless steel tubular and square legs.
Self-bearing undershelf eliminates the need for additional frames.
Stainless steel feet 50 mm adjustable in height to align the operation height between the dishwasher and table.
Sloping bottom of the table grants a smooth and rapid drainage.
AISI 304 1,2mm stainless steel basin.
Conveyors optionally equipped with end-limit switch, guides for racks, and undershelves.
Plastic rollers easy to remove for cleaning.
