Cooking Range Line thermaline 90 Freestanding electric pastacooker, 1/1GN, 1 side, H=250 - Marine USPHS only M2M (COD 589923)
Where to buy
Pasta Cookers - Electric

Cooking Range Line thermaline 90

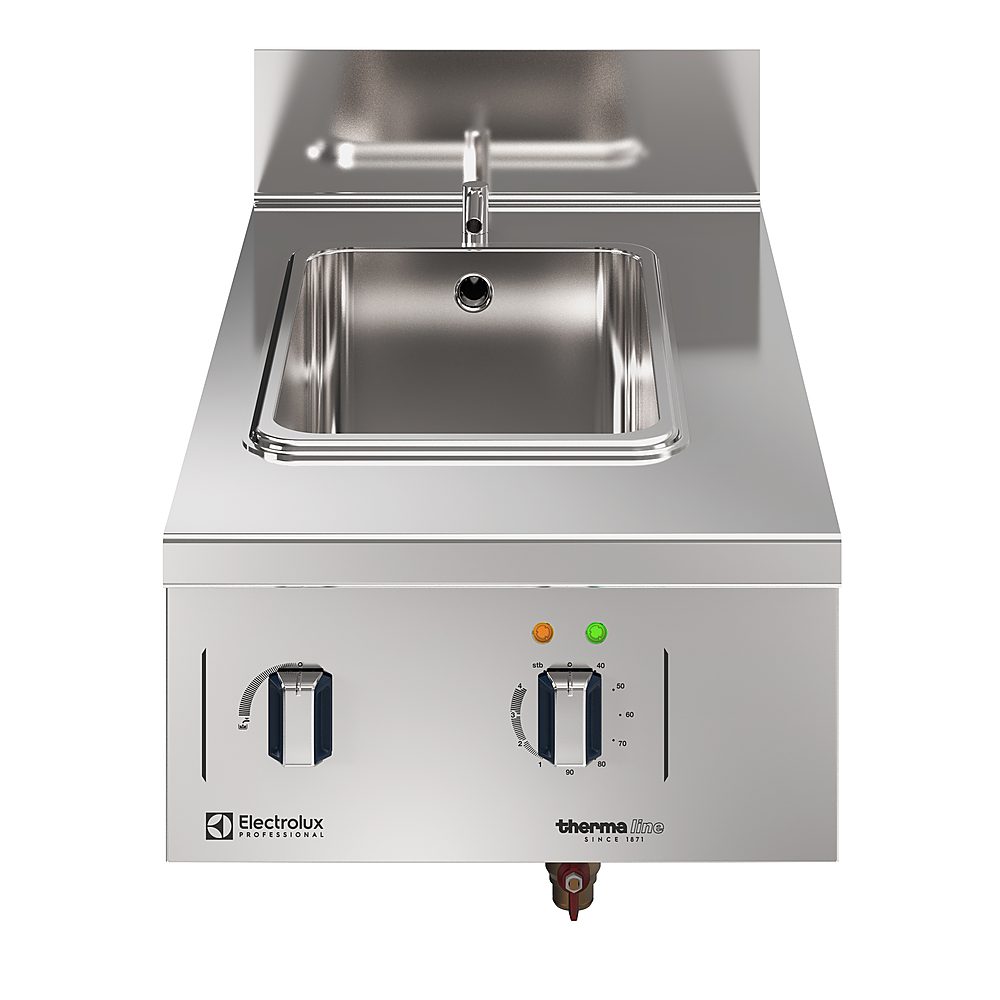

Freestanding electric pastacooker, 1/1GN, 1 side, H=250 - Marine USPHS only M2M

COD 589923

Electric Pasta Cooker, one-side operated with splashback, 1/1 GN - Marine USPHS (only M2M)

Specifications

  • Supply voltage: 440 V/3 ph/60 Hz

    Total Watts: 7.5 kW

  • Number of wells: 1

    Usable well dimensions (width): 309 mm

    Usable well dimensions (height): 205 mm

    Usable well dimensions (depth): 512 mm

    Well capacity: 5 lt MIN; 21 lt MAX

    Thermostat Range: 40 °C MIN; 90 °C MAX

    External dimensions, Width: 500 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 250 mm

    Net weight: 45 kg

    Configuration: One-Side Operated;Top

  • Current consumption: 9.9 Amps

  • Incoming Cold/hot Water line size: 3/4"

    Drain line size: 1"

Product Features

Main Features

Filling water level is plate-marked on the side of the well.
Overheat protection: the temperature sensor switches off the supply in case of overheating.
Easy to clean basin with rounded corners.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
Automatic low-water level shut-off: no accidental over-heating.
Raised edge all around the well to protect from infiltration of dirt from worktop.
Safety systems protect against overtemperature and can be manually reset.
Water temperature controlled by electronic sensor and can be selected as either temperature or power levels.
Multi purpose cooking appliance that combines functions of bain marie and pasta cooker, allowing also the re-generation of food thanks to the electronic temperature control.
Overheat protection: the temperature sensor switches off the supply in case of overheating.
Automatic low-water level shut-off: no accidental over-heating.
Filling water level is plate-marked on the side of the well.
IPX6 water protection.
Easy to clean basin with rounded corners.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
Raised edge all around the well to protect from infiltration of dirt from worktop.
Water temperature controlled by electronic sensor and can be selected as either temperature or power levels.
Multi purpose cooking appliance that combines functions of bain marie and pasta cooker, allowing also the re-generation of food thanks to the electronic temperature control.
Safety systems protect against overtemperature and can be manually reset.
Manual water fill regulated by a water tap.
IPX6 water protection.

Sustainability

Standby function for energy saving and fast recovery of maximum power.

Construction

Internal frame for heavy duty sturdiness in stainless steel.
Water basin in 1.4435 (AISI 316L) stainless steel is seamlessly welded into the top of the appliance.
Water basin in 1.4435 (AISI 316L) stainless steel is seamlessly welded into the top of the appliance.
Internal frame for heavy duty sturdiness in stainless steel.
3mm top with 3 mm reinforcement in 1.4301 (AISI 304).
3mm top with 3 mm reinforcement in 1.4301 (AISI 304).
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 120 mm recessed plinth.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 120 mm recessed plinth.
