Main Features
Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Self closing stainless steel doors (< 90°).
Hot gas automatic evaporation of defrost water.
Refrigerated compartment designed to accept GN 1/1 containers.
Preservation performances and temperature uniformity within the cell guaranteed at 5-HEAVY DUTY (40°C) working conditions according to EN16825:2016 test protocol.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Frontal and easy access to all components in the cooling unit.
Certified safety CE requirements.
Forced air circulation for rapid cooling and an even temperature distribution.
Small footprint to fit even in limited environments.
Digital control panel.
Combination of doors and drawers to suit varying needs, with the possibility to change the configuration on site.
Anti-tilt runners accept GN 1/1 containers.
Digital white-digit display with internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Easy serviceability thanks to the intuitive control panel with access via app.
Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Tropicalized unit.
Adjustable temperature range from -2 °C to +10 °C to suit meat, fish and dairy storage requirements.
Automatic evaporation of defrost water.
Sustainability
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).
User Interface & Data Management
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Construction
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
External back panel in galvanized steel.
Interior base with rounded corners, pressed from a single sheet.
Excellent space optimisation thanks to the compact dimensions.
Extractable cooling unit to facilitate maintenance.
IP21 protection index.

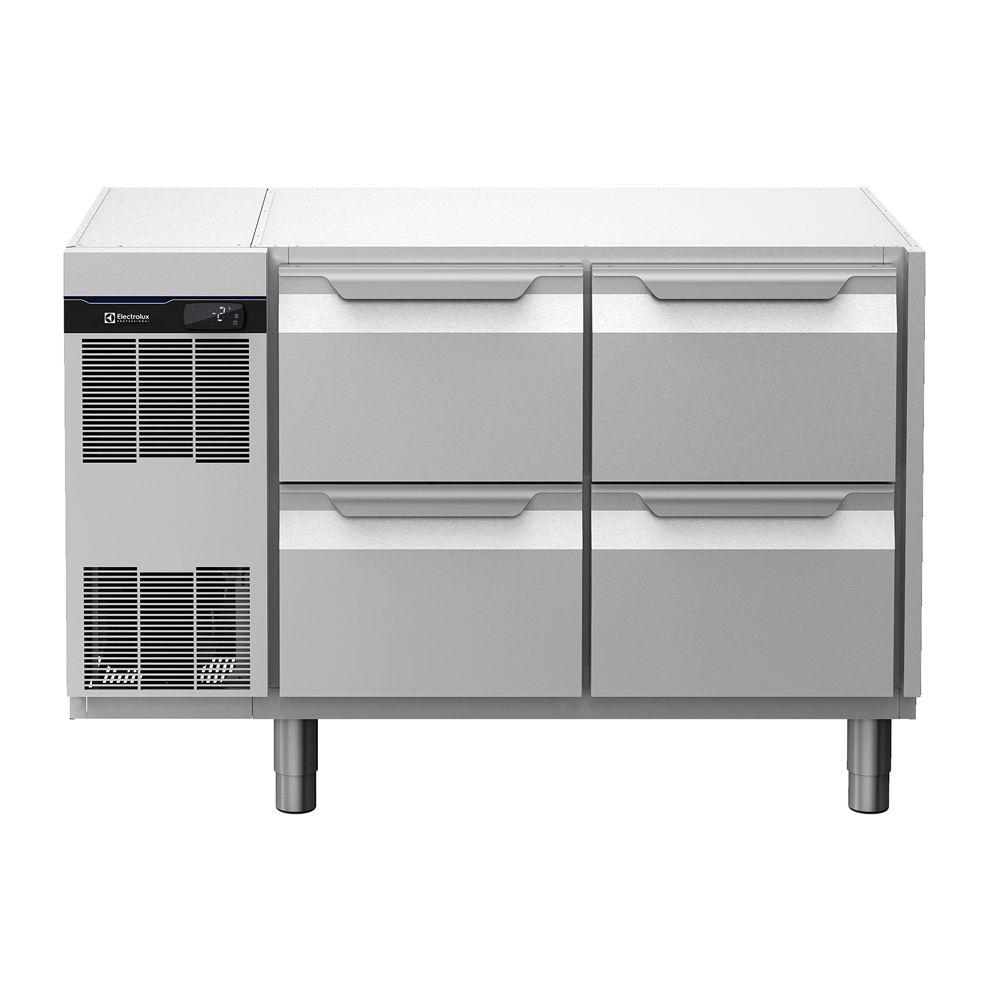

Internal dimension of the drawers.
• models with 2 1/2 drawers: 1st drawer (top drawer) 203x302x521 / 2nd drawer 223x302x521 (HxWxD)
• models with 3 1/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd and 3rd drawers 118x302x521 (HxWxD)
• models with 1/3+2/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd drawer 333x302x521 (HxWxD)
Fault code display.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Built-in compressor to suit operating conditions.
Access to all components from the front.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.
Pre-arranged for drain-pipe.
External bottom panel in stainless steel.
Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
Internal and external doors, front, back and side panels in AISI 304 Stainless steel.
Mounted on Stainless steel adjustable legs to give 150 mm clearance for ease of cleaning.
Rounded internal corners for ease of cleaning.
Built-in refrigeration unit.
Mounted on 150 mm adjustable feet.
304 AISI stainless steel internal and external doors, front and side panels. Evaporator in aluminium.
High-density expanded polyurethane foam 50 mm in thickness with cyclopenthane injection.
