Digital Undercounter ecostore HP Concept Refrigerated Counter - 2 Door without Top (R290) (COD 710440)
Where to buy
ecostore HP Concept Refrigerated Counters - 2 comp. - No top

Digital Undercounter

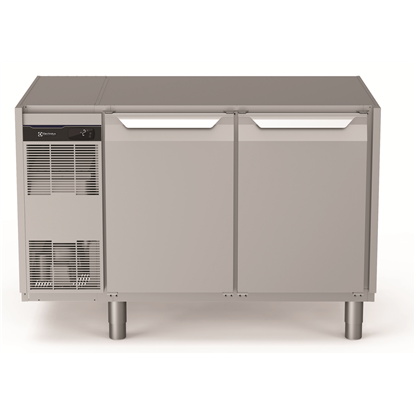

ecostore HP Concept Refrigerated Counter - 2 Door without Top (R290)

COD 710440

2-door Refrigerated Counter, -2+10°C, AISI 304 (R290), without work top

Specifications

  • Built-in Compressor and Refrigeration Unit

    Net Volume: 180.8 lt

    External dimensions, Width: 1241 mm

    External dimensions, Depth: 700 mm

    External dimensions, Height: 850 mm

    Internal Dimensions, Width: 798 mm

    Internal Dimensions, Depth: 560 mm

    Internal Dimensions, Height: 550 mm

    Net weight: 90 kg

    Shipping volume: 1.09 m³

    Depth with doors open: 1110 mm

    Height adjustment: -5/50 mm

    Gross capacity: 290 lt

  • ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001

  • Supply voltage: 220-240 V/1 ph/50 Hz

    Electrical power max: 0.22 kW

    Defrost Power: 0.2 kW

    Plug type: CE-SCHUKO

  • Control type: Digital

    Refrigeration power at evaporation temperature: -10 °C

    Min/Max internal humidity: 40/85

    Operating temperature min.: -2 °C

    Operating temperature max.: 10 °C

    Compressor power: 0.25 hp

    Operating mode: Ventilated

    Insulation: 90 mm (Cyclopentane)

  • Current consumption: 1.6 Amps

    Refrigerant type: R290

    GWP Index: 3

    Refrigeration power: 358 W

    Refrigerant weight: 45 g

    Energy Class (EU Reg. 2015/1094): A

    Yearly and daily energy consumption (EU Reg. 2015/1094): 482kWh/year - 1kWh/24h

    Climate class (EU Reg. 2015/1094): Heavy Duty (5)

    Energy Efficiency Index-EEI (EU Reg. 2015/1094): 21,40

Product Features

Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Certified safety CE requirements.
Frontal and easy access to all components in the cooling unit.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Anti-tilt runners accept GN 1/1 containers.
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Hot gas automatic evaporation of defrost water.
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.
Preservation performances and temperature uniformity within the cell guaranteed at 5-HEAVY DUTY (40°C) working conditions according to EN16825:2016 test protocol.
Self closing stainless steel doors (< 90°).
Digital white-digit display with internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Easy serviceability thanks to the intuitive control panel with access via app.
Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Tropicalized unit.
Digital control panel allowing the easy and precise setting and control of the internal temperature.
Operating temperature can be adjusted from -2 to +10 °C to suit different food storage requirements.
Adjustable temperature range from -2 °C to +10 °C to suit meat, fish and dairy storage requirements.
Refrigerated compartment designed to accept GN 1/1 containers.
Combination of doors and drawers to suit varying needs, with the possibility to change the configuration on site.
Digital control panel.
Forced air circulation for rapid cooling and an even temperature distribution.
Complies with main international certification bodies and is CE marked.
Kit 1/2 drawers available as accessory.
Forced air cooling system guaranteeing great uniformity of the temperature in the counter and excellent conservation of the food quality.
Completely automatic defrosting.
External back panel in galvanized steel.
Extractable cooling unit to facilitate maintenance.
External bottom panel in stainless steel.
Fault code display.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Built-in refrigeration unit.
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
Excellent space optimisation thanks to the compact dimensions.
Pre-arranged for drain-pipe.
2 compartments with 2 doors.
Interior base with rounded corners, pressed from a single sheet.
Remote refrigeration unit.
Built-in compressor to suit operating conditions.
Internal and external doors, front, back and side panels in AISI 304 Stainless steel.
Rounded internal corners for ease of cleaning.
Mounted on Stainless steel adjustable legs to give 150 mm clearance for ease of cleaning.
Access to all components from the front.
Legs in 304 AISI stainless steel (150 mm high, adjustable in height), with plastic interior.
The door self-closes when opened less than at a 90° angle and is equipped with a door seal to guarantee perfect closure.
High standards of hygiene and ease of cleaning are guaranteed by the rounded internal corners of the cabinet and easily removable runners and grids.
Insulation guaranteed by high density expanded cyclopenthane 50 mm in thickness.
Internal and external doors, front and side panels and 50mm thick removable worktop in 304 AISI stainless steel.
Back panel in galvanized steel.

Included Accessories

Quantity
Code
Description
Quantity: 2
Code: 881109
Kit 1/1 grey rilsan grid and 2 side runners for refrigerated counters
