Main Features
Adjustable temperature range from -2 °C to +10 °C to suit meat, fish and dairy storage requirements.

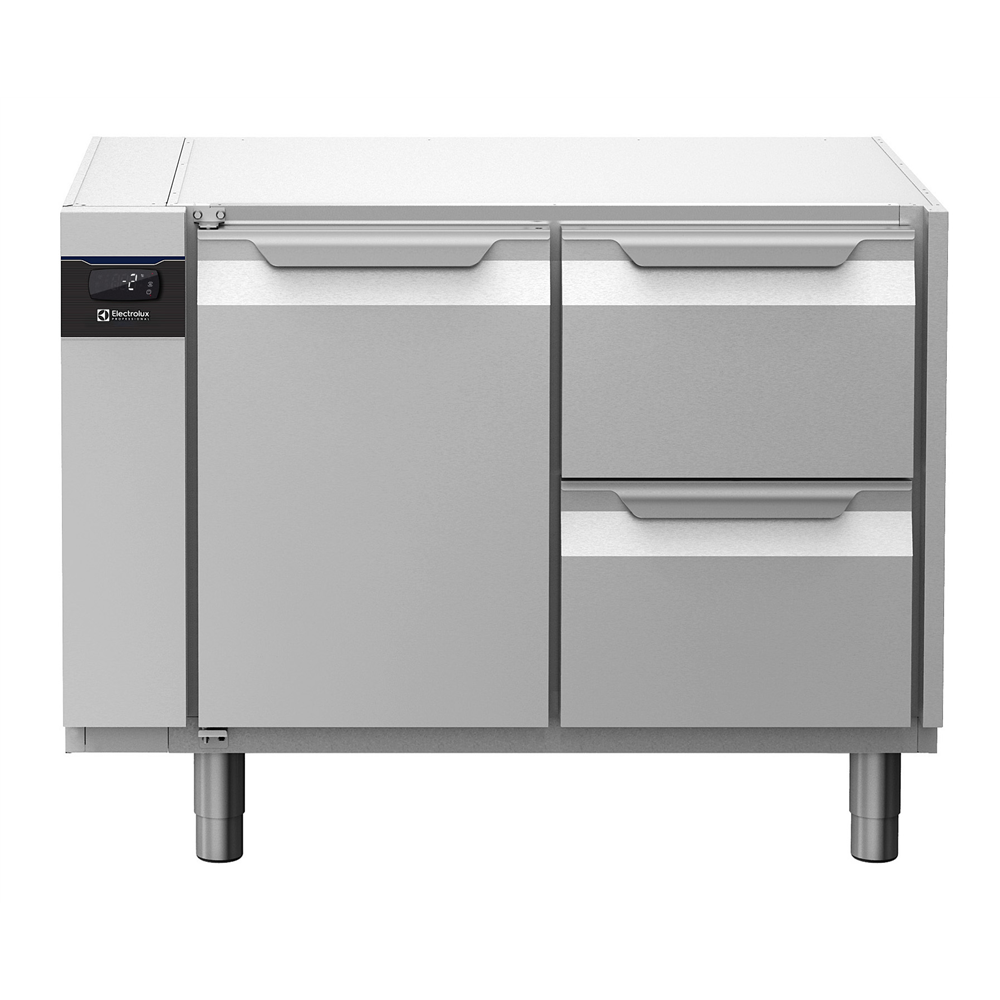

Combination of doors and drawers to suit varying needs, with the possibility to change the configuration on site.
Digital control panel.
Forced air circulation for rapid cooling and an even temperature distribution.
Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.
Refrigerated compartment designed to accept GN 1/1 containers.
Digital white-digit display with internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Certified safety CE requirements.
Digital white-digit display with internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Anti-tilt runners accept GN 1/1 containers.
Self closing stainless steel doors (< 90°).
Tropicalized unit.
Certified safety CE requirements.
Tropicalized unit.
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Sustainability
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
CFC and HCFC free (ecological refrigerant type: R134a, - gas in foam: cyclopenthane).
Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).
User Interface & Data Management
Easy serviceability thanks to the intuitive control panel with access via app.
Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Construction
Excellent space optimisation thanks to the compact dimensions.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Fault code display.
Interior base with rounded corners, pressed from a single sheet.
Mounted on Stainless steel adjustable legs to give 150 mm clearance for ease of cleaning.
Remote refrigeration unit.
Rounded internal corners for ease of cleaning.
Constructed from AISI 304 Stainless steel throughout to meet the highest hygiene standards.

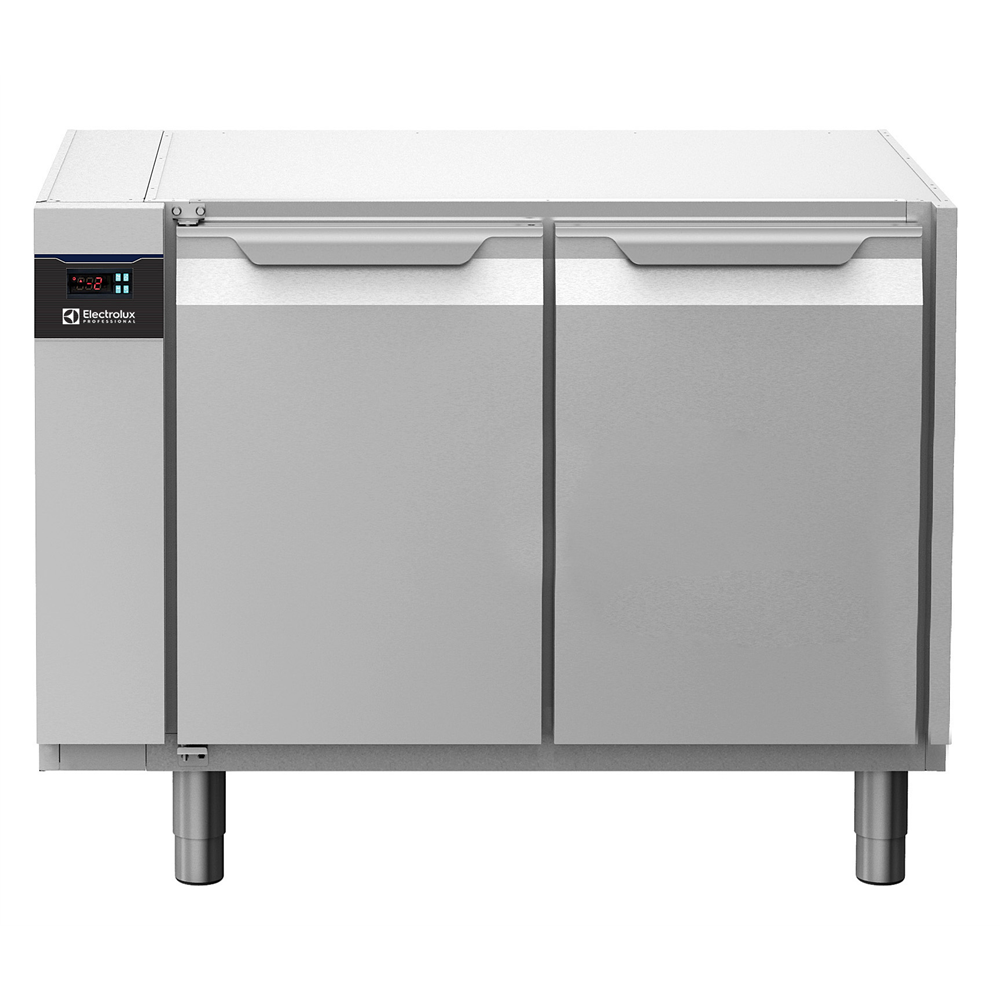

2 compartments with 2 doors.
Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
External bottom panel in stainless steel.
External back panel in galvanized steel.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
Extractable cooling unit to facilitate maintenance.
Pre-arranged for drain-pipe.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Remote refrigeration unit.
Constructed from AISI 304 Stainless steel throughout to meet the highest hygiene standards.
Pre-arranged for drain-pipe.
2 compartments with 2 doors.
External back panel in galvanized steel.
Excellent space optimisation thanks to the compact dimensions.
Extractable cooling unit to facilitate maintenance.
