Main Features
Anti-tilt runners accept GN 1/1 containers.
Equipped with forced air circulation system for rapid cooling and temperature distribution within the cell.
Certified safety CE requirements.
Frontal and easy access to all components in the cooling unit.
Combination of doors and drawers to suit any configuration needed, with the possibility to change the configuration on site. Right cooling unit available on request.
Hot gas automatic evaporation of defrost water.
0mm clearance installation space: tower configuration cooling unit guarantee performance with frontal ventilation only; this unique solution allows installation against the wall or side by side with other appliances, even on the cooling unit side to maximize the use of kitchen space.
Prearranged to fit RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Self closing stainless steel doors (< 90°).
Adjustable temperature range from -15 °C to -22 °C to suit meat, fish and dairy storage requirements.

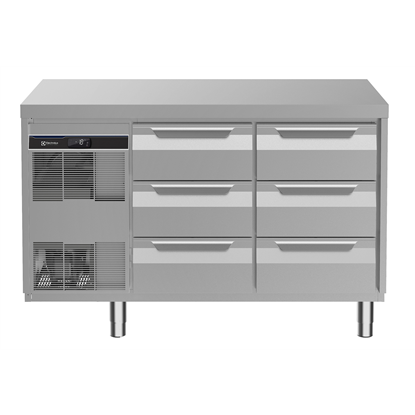

Combination of doors and drawers to suit varying needs, with the possibility to change the configuration on site.
Freezer compartment designed to accept GN1/1 containers.
Digital control panel with temperature display.
Forced air circulation for rapid cooling and an even temperature distribution.
Digital white-digit display with internal temperature display and setting, manual activation of defrost cycle and turbo frost cycle (to rapidly cool warm loads).
Easy serviceability thanks to the intuitive control panel with access via app.
Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.
Tropicalized unit.
Sustainability
Fitted with 90 mm thickness of cyclopentane insulation for best insulating performance (thermal conductivity: 0,020 W/m*K) and lowest environmental impact (GWP=3).
CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.
Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.
User Interface & Data Management
Fully compliant HACCP digital control: when temperature exceeds critical limits, acoustic and visual alarms are activated. Up to two months of event are kept in memory.
Connectivity ready for real time access to connected appliances from remote and data monitoring (requires optional accessory).
Construction
Full stainless steel construction. Internal structure and worktop in AISI 304 Stainless steel.
Mounted on Stainless steel adjustable legs to give 150 mm clearance for ease of cleaning.
Rounded internal corners for ease of cleaning.
Worktop in AISI 304 Stainless steel with a 50 mm profile.
Internal dimension of the drawers.
• models with 2 1/2 drawers: 1st drawer (top drawer) 203x302x521 / 2nd drawer 223x302x521 (HxWxD)
• models with 3 1/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd and 3rd drawers 118x302x521 (HxWxD)
• models with 1/3+2/3 drawers: 1st drawer (top drawer) 98x302x521 / 2nd drawer 333x302x521 (HxWxD)
Extractable cooling unit to facilitate maintenance.
Excellent space optimisation thanks to the compact dimensions.
Access to all components from the front.
Internal structure with 15 charging positions (3 cm pitch) available to host GN 1/1 grids, ensuring higher net capacity and a greater storage space.
Ease of cleaning and high hygiene standards thanks to the rounded internal corners, the easily removable runners, grids and air conveyors.
Built-in compressor to suit operating conditions.
External back panel in galvanized steel.
External bottom panel in stainless steel.
Mounted on stainless steel feet to give 150 mm (-5/+50 mm) clearance for ease of cleaning the floor.
Interior base with rounded corners, pressed from a single sheet.
Developed and produced in ISO 9001 and ISO 14001 certified factory.
Internal and external doors, front and side panels and removable worktop in AISI 304 Stainless steel.
Pre-arranged for drain-pipe.
Fault code display.
If needed, working top can be removed for easier handling during installation (in case of narrow doors).
Built-in refrigeration unit.
Anti-drip profile on stainless steel worktop edge.
