Warewashing Flight type dishwasher, 3 tanks, 8200 dishes/h, electric, 1100mm loading, 1900mm unloading, ESD (COD 520753)

Compare Where to buy

3 Tanks

Warewashing

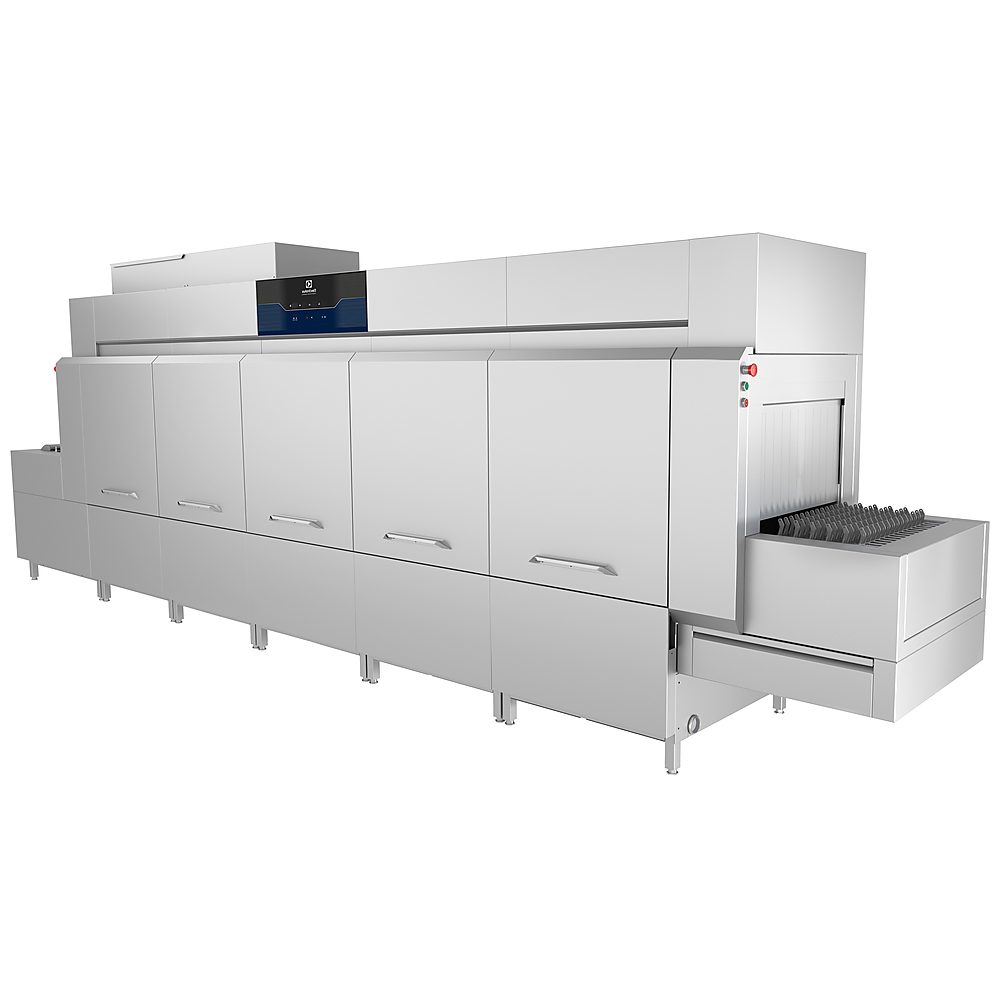

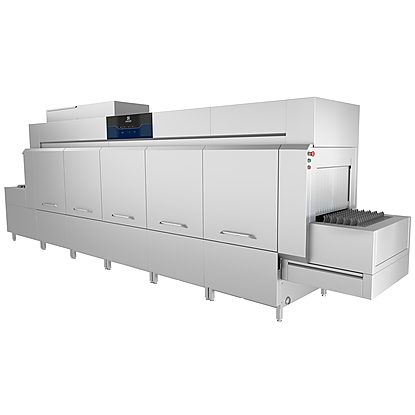

Flight type dishwasher, 3 tanks, 8200 dishes/h, electric, 1100mm loading, 1900mm unloading, ESD

COD 520753

Flight Type Dishwasher, 3 tanks, 8200 dishes/h, electric, 1100mm loading, 1900mm unloading, 1 dryer, 55mm conveyor, ESD, right to left (APAC + MEA)

Compare

Where to buy

Product registration

Specifications

Air Emission

Air temperature: 40 °C

Air humidity: 100 % r.h.

Air flow: 500 m³/h

The data is measured at exhaust points at 25°C and 60% r.h. ambient conditions, 14°C inlet water temperature and refer only to the machine.
Water

The higher the temperature, the faster the warm-up time. Recommended temperature of 50°C.

Inlet water line size: ISO 3/4" G

Drain line size: 2"

Inlet water supply pressure: 1-6 bar

Inlet water supply temperature (boiler): 10 min / 30 max °C

Inlet water supply temperature (tanks): 10 min / 60 max °C

Inlet water supply hardness (min/max):

Pre-wash tank size: 98 l

Wash tank size: 98 l

2nd wash tank size: 98 lt

Duo rinse tank size: 8 l

Flow rate of pre-wash pump: 560 l/m

Flow rate of 1st wash pump: 560 l/m

Flow rate of 2nd wash pump: 560 l/m
Key Information

Productivity per hour (max speed): 8200dishes/5486trays/304Basket

Height with door open: 2092 mm

Charging hole size (width): 612 mm

External dimensions, Width: 7000 mm

External dimensions, Depth: 946 mm

External dimensions, Height: 1983 mm

Charging hole size (height): 412 mm

Net weight: 1419 kg

Productivity per hour (slow speed): 6156dishes/4104trays/228Basket

Conveyor speed (min/max): 2 / 2.6

Pre-wash temperature: 30-50°C

1st wash temperature: 55-65 °C

2nd wash temperature: 55-65 °C

Duo rinse temperature: 50-70 °C

Final rinse temperature: 82-90 °C

Drying temperature: 50-70 °C

Drying fan capacity: 3500 m³/h
Electric

Supply voltage: 380-415 V/3N ph/50 Hz

Wash tank heating elements: 16 kW

2nd wash tank heating elements: 16 kW

Default Installed Power: 66.7 kW

Boiler heating elements: 18 kW

Dryer install power: 9.75 kW

Rinse pump size: 0.25 kW

Pre-wash pump size: 2 kW

Wash pump size: 2 kW

2nd wash pump size: 2 kW
Sustainability

Rinse water consumption at max. speed: 280 l/h

Documents

Product Features

Main Features

The water in the main wash tanks circulating at a temperature of 55-65°C is pumped with detergent and is sprayed over the items from both the upper and the lower wash arms, guaranteeing a uniform distribution of the washing solution and allowing all the areas of the washing chambers to be covered.

Rinse area equipped with the DUO-rinse system: the first rinse arms with side nozzles are filled with re-circulated rinsed water then spray at powerful pressure in a curtain pattern to eliminate majority trace of detergent, while the second arms are filled with hot clean water at temperature of 82-90°C to guarantee the hygiene performance on the washed wares.

Built-in pre-adjustable pressure valve before the boiler stabilizes incoming water pressure to ensure the proper rinsing pressure for optimum hygiene.

A drying section with inspection door (800 mm length) is equipped as an integral part of the machine. This allows the operator to remove practically dried items immediately, without them being too hot to handle.

Two conveyor speeds can be selected through the control panel by the operator.

The multi-purpose conveyor belt with 55mm finger distance allows to load the tablewares either directly on the conveyor or using standard 500x500mm racks.

Simple service from the front.

The machine incorporates a safety switch for stop in urgency at both loading and unloading sections which will stop the conveyor by pushing the button in case that washed wares have not been removed after cleaning.

Flat panel with simple to use control and all temperature displays.

Adjustable feet for full access underneath the machine for cleaning.

The cold water in the pre-wash tank is pumped to both the upper and the lower arms to pre-clean the soiled products, ensuring that larger food particles and liquid residues such as gravy and sauces are washed from the items, thereby reducing greatly the soil level on the items entering the machine’s main wash tank.

The large loading section of 1.100mm facilitates the loading of tablewares.

Maximum capacity per hour of 8.200 dishes.

The unloading section of 1900mm with an end limit switch mounted at the end stops the conveyor automatically to avoid damaging clean items if not removed on time.

Construction

All main components made in heavy duty anti-corrosive 304 type stainless steel: external front, side, back panels and internal chamber, wash and arms, tank filters, doors.

Deep drawn pressed tanks with fully round corners to prevent dirt build up provides fast drainage. Pressed tanks with no welded points offer a guaranteed water tight solution.

No leg in loading area.

Double tank filters (flat and small strainer) cover the entire width of the tank.

Wash/rinse arms and filters are easy to remove for cleaning.

Drain line is fully enclosed with anti-corrosive 304 type stainless steel panels for easy and safe floor cleaning as well as avoid damaging the pipe during transportation.

Detergents and Chemicals (not included)


Code

Description

Code: 0S2092

C11 Detergent for dishwashers; one pack of 2 cans of 5lt.

Code: 0S2093

C13 ECO Detergent for dishwashers; one pack of 2cans of 5lt.

Code: 0S2094

C12 Rinse aid for dishwashers; one pack of 2 cans of 5lt.

Code: 0S2281

C11 Detergent for dishwashers; 1 can of 20lt.

Code: 0S2362

C30 Multipurpose descaler; one pack of 2 cans of 5lt.

Code: 0S2904

C15 ECO Rinse aid for dishwashers; one pack of 2 cans of 5lt.
