Cooking Range Line thermaline 90 4 Zone Electric Solid Top with Ecotop, 1 Side - Marine USPHS only M2M (COD 589932)
Where to buy
Cooking Range Line thermaline 904 Zone Electric Solid Top with Ecotop, 1 Side - Marine USPHS only M2M
Electric Solid Tops - 4 Zone

Cooking Range Line thermaline 90

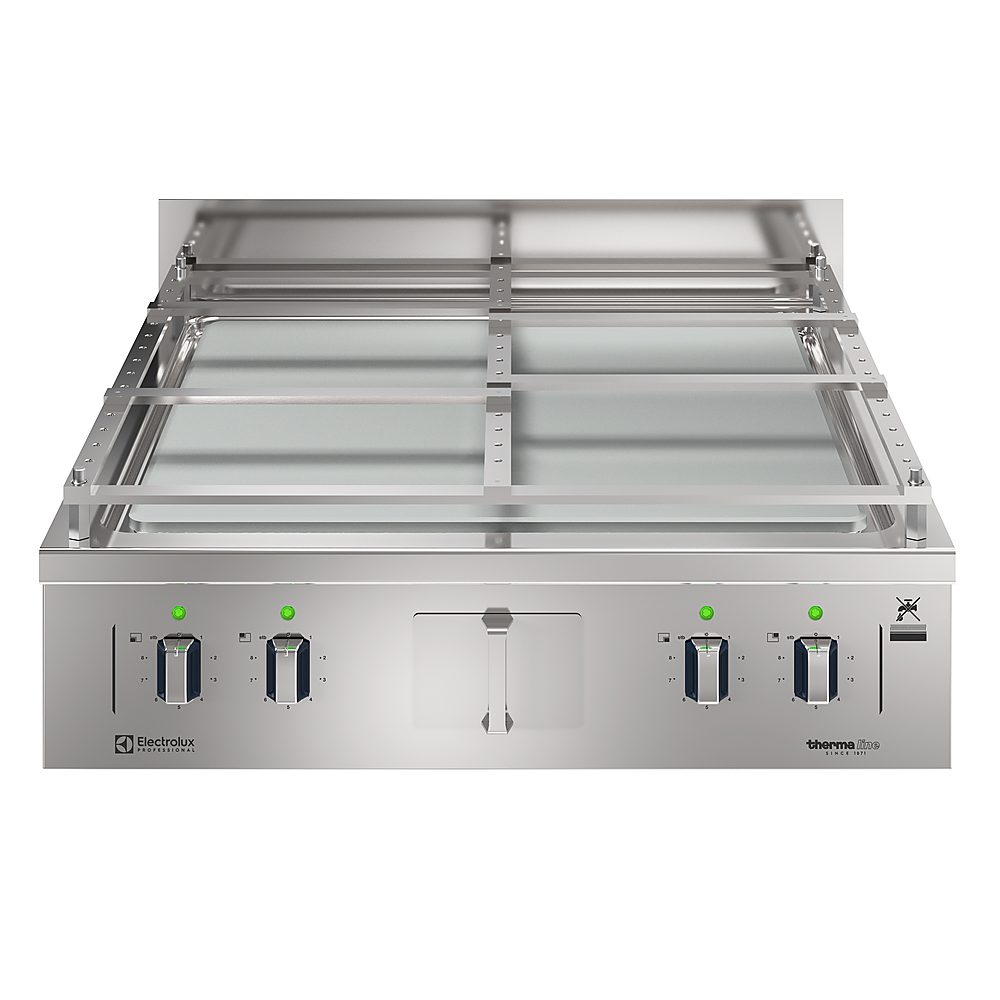

4 Zone Electric Solid Top with Ecotop, 1 Side - Marine USPHS only M2M

COD 589932

Electric Solid Top, 4 zones, ecoTop coating, one-side operated with splashback - Marine USPHS (only M2M)

Where to buy
Product registration

Specifications

  • Supply voltage: 440 V/3 ph/60 Hz

    Total Watts: 16 kW

  • External dimensions, Width: 1000 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 250 mm

    Net weight: 170 kg

    Configuration: One-Side Operated;Top

    Front Plates Power: 4 - 4 kW

    Back Plates Power: 4 - 4 kW

    Solid top usable surface (width): 820 mm

    Solid top usable surface (depth): 720 mm

  • Current consumption: 24 Amps

Product Features

Main Features

Rapid heat up of the plate and continuously ready for use.
Overheat protection: the temperature sensor switches off the supply in case of overheating.
Pans can easily be moved from one area to another without lifting.
Wide rounded cleaning zone around the plates for easier cleaning.
All major components may be easily accessed from the front.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
Cooking plate and base joint profile guarantee against soil infiltration.
Two electronic sensors per zone to control surface temperature and to protect cooking plate from overheating.
8 power levels.
ECOTOP model has a 20 mm thick steel DIN 1.7335 nickel coated cooking surface.
4 heating zones independently controlled.
IPX6 water protection.

Construction

Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).
3mm top with 3 mm reinforcement in 1.4301 (AISI 304).
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 120 mm recessed plinth.
