Cooking Range Line thermaline 90 14 lt Well Freestanding Electric Deep Fat Fryer, 1 Side, H=700 - Marine USPHS only M2M (COD 589914)

Compare Where to buy

Deep Fat Fryers - Electric

Cooking Range Line thermaline 90

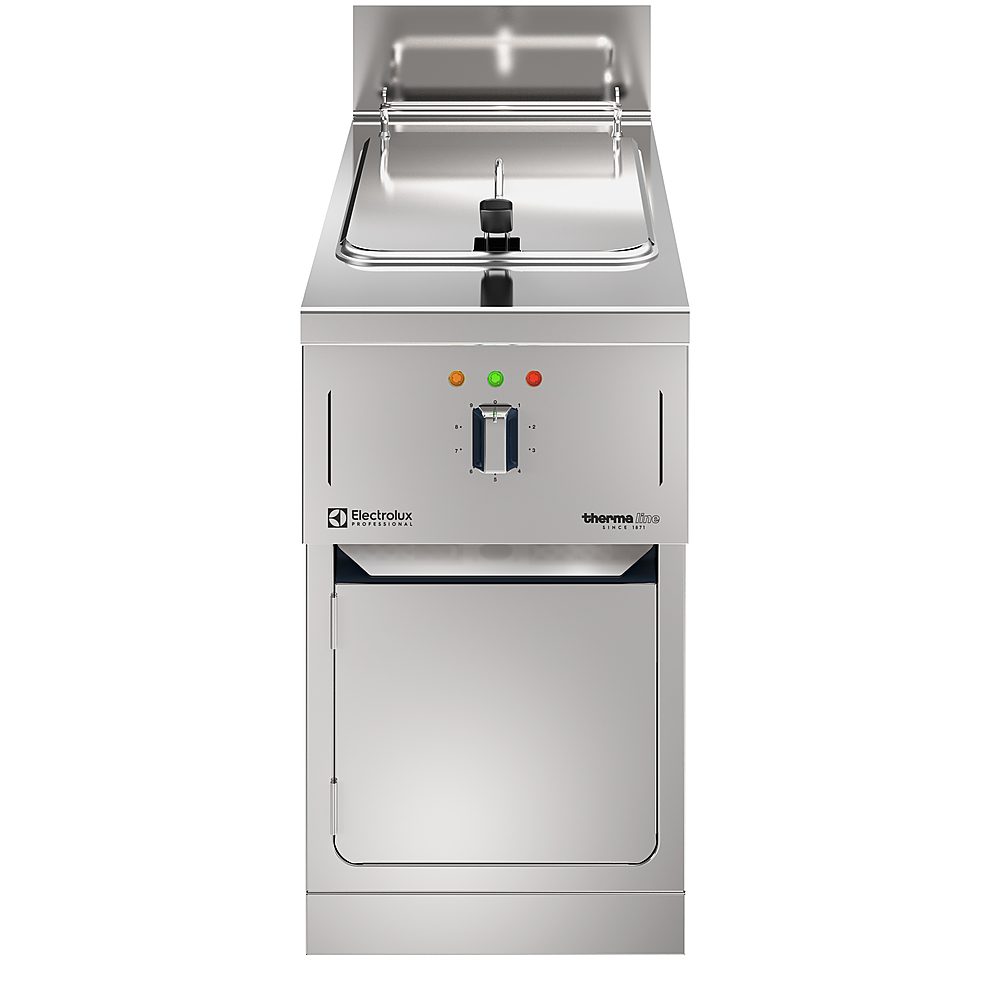

14 lt Well Freestanding Electric Deep Fat Fryer, 1 Side, H=700 - Marine USPHS only M2M

COD 589914

14lt electric Deep Fat Fryer, one-side operated with splashback - Marine USPHS (only M2M)

Compare

Where to buy

Product registration

Specifications

Electric

Supply voltage: 440 V/3 ph/60 Hz

Total Watts: 10 kW
Key Information

Number of wells: 1

Usable well dimensions (width): 240 mm

Usable well dimensions (height): 225 mm

Usable well dimensions (depth): 380 mm

Well capacity: 12 lt MIN; 14 lt MAX

Thermostat Range: 100 °C MIN; 180 °C MAX

External dimensions, Width: 400 mm

External dimensions, Depth: 900 mm

External dimensions, Height: 700 mm

Net weight: 70 kg

Configuration: On Base;One-Side Operated
Sustainability

Current consumption: 13.1 Amps

Documents

Product Features

Main Features

Overheat protection: the temperature sensor switches off the supply in case of overheating.

External heating elements allow to easily clean the well.

Electronic sensor for precise oil temperature control.

Deep drawn V-Shaped well.

Large overflow stamped area, located around the well.

Raised edge all around the well to protect from infiltration of dirt from worktop.

Oil level mark for MAX/MIN filling.

Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.

All major components may be easily accessed from the front.

Reduced power setting to melt solid fat.

Indirect oil heating system and uniform heat distribution to guarantee extended oil life.

Oil can be drained off via a ball-valve with a lock to prevent unintentional opening. When opened, the ball valve provides a full cross-section opening to easily clean the drainage system.

Designed for deep fat frying of meat, fish, specialities and vegetable (french fries, chips).

IPX6 water protection.

Sustainability

Standby function for energy saving and fast recovery of maximum power.

This model is compliant with Swiss Energy Efficiency Ordinance (730.02).

Construction

Internal frame for heavy duty sturdiness in stainless steel.

3mm top with 3 mm reinforcement in 1.4301 (AISI 304).

Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 120 mm recessed plinth.

Included Accessories


Quantity

Code

Description

Quantity: 1

Code: 921691

1 full size basket for 14/15lt fryers

Detergents and Chemicals (not included)


Code

Description

Code: 0S2292

C41 HI-TEMP RAPID DEGREASER, 1 pack of six 1 lt. bottles (trigger incl.)

Code: 0S2881

Code: 0S2882

S02 Degreaser for ovens and SpeedDelight. Specific for cleaning the cooking chambers of GourmeXpress and SpeeDelight. Active up to a maximum of 50°C Complete with spray bottle Pack of 6 750ml bottles

Code: 0S2883

Code: 0S2884

Code: 0S3257
