Cooking Range Line thermaline 90 Full Module Electric Chargrill, 1 Side 1200 - Marine USPHS only M2M (COD 589936)
Where to buy
Cooking Range Line thermaline 90Full Module Electric Chargrill, 1 Side 1200 - Marine USPHS only M2M
Chargrills - Electric

Cooking Range Line thermaline 90
Full Module Electric Chargrill, 1 Side 1200 - Marine USPHS only M2M

COD 589936

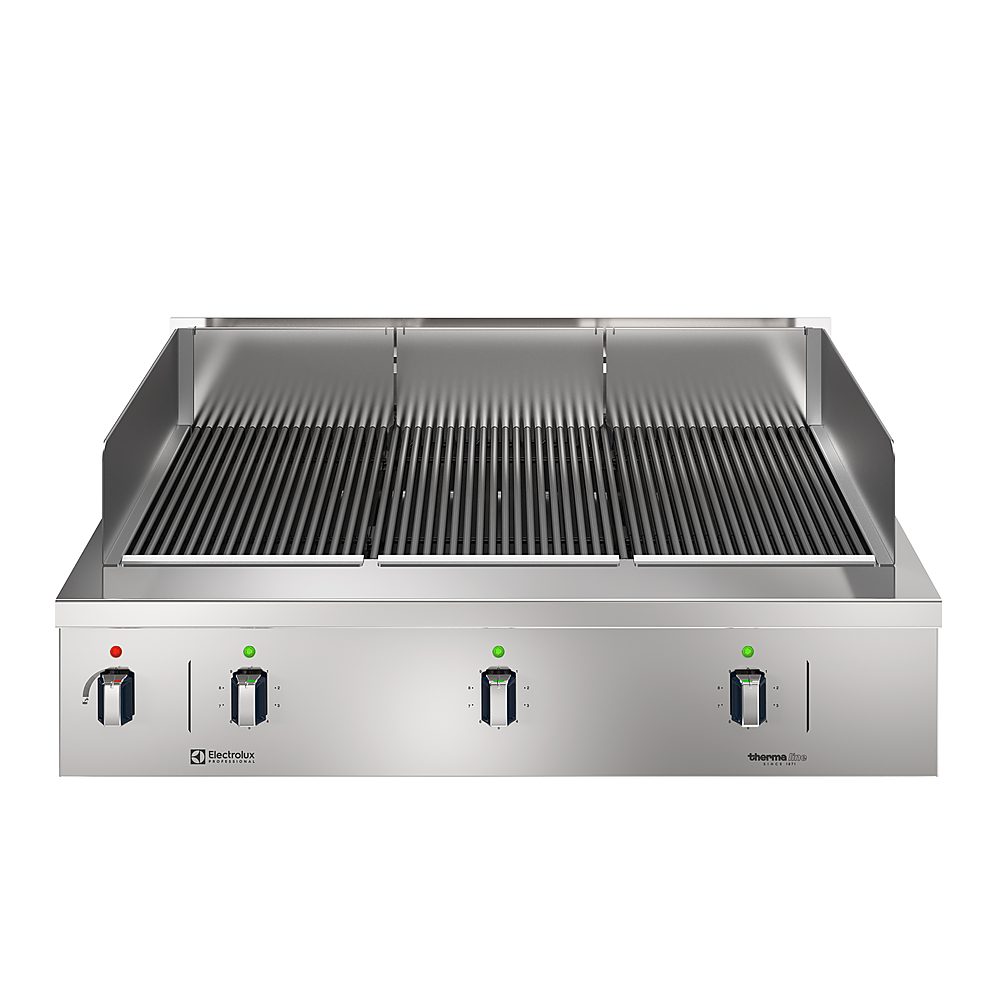

Electric Chargrill Top, one-side operated with splashback - Marine USPHS (only M2M)

Where to buy
Product registration

Specifications

  • Supply voltage: 440 V/3 ph/60 Hz

    Electrical power, max: 16.2 kW

    Total Watts: 16.2 kW

  • External dimensions, Width: 1200 mm

    External dimensions, Depth: 900 mm

    External dimensions, Height: 250 mm

    Net weight: 125 kg

    Configuration: One-Side Operated;Top

    Grid dimensions: 1065 mm

Product Features

Main Features

Stainless steel high splash guards on the rear and sides of cooking surface.
All major components may be easily accessed from the front.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
Stainless steel high splash guards on the rear and sides of cooking surface.
All major components may be easily accessed from the front.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
IPX6 water protection.
IPX6 water protection.

Construction

Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).
Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).
3mm top with 3 mm reinforcement in 1.4301 (AISI 304).
3mm top with 3 mm reinforcement in 1.4301 (AISI 304).
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 120 mm recessed plinth.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 120 mm recessed plinth.
