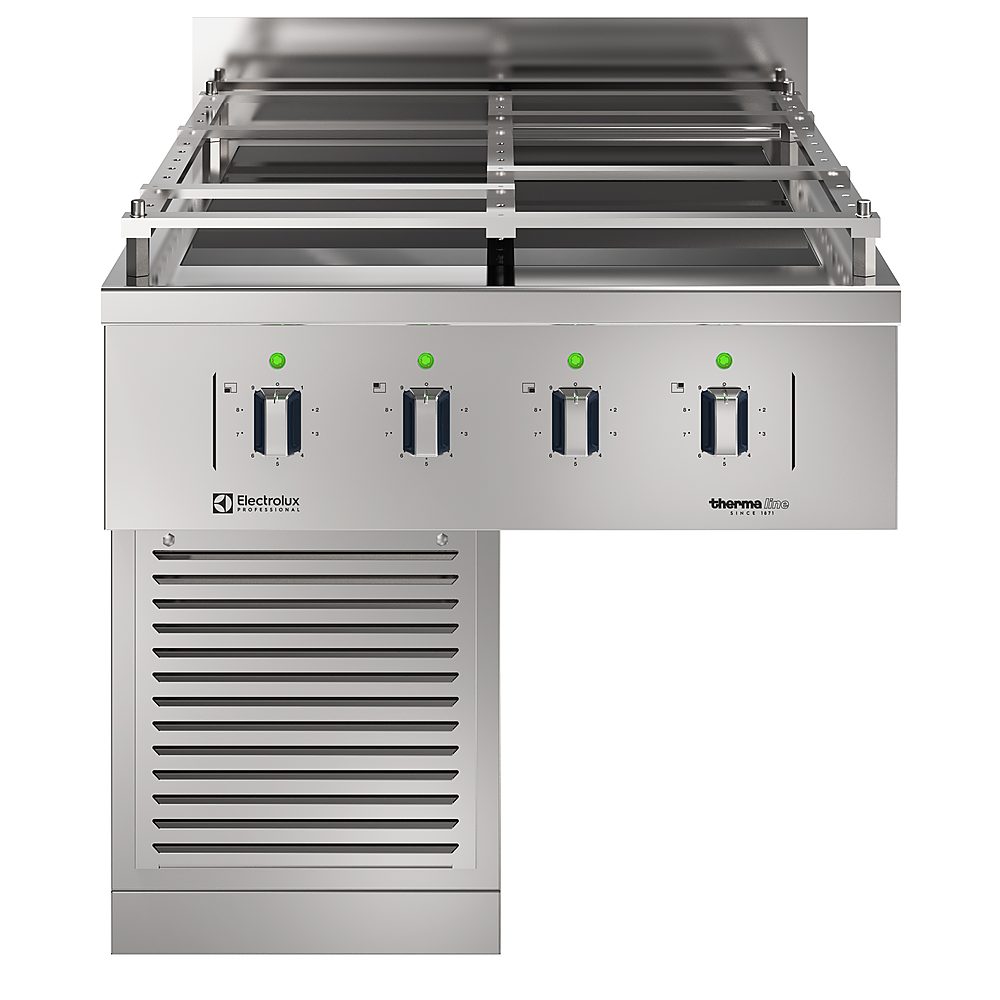

Cooking Range Line thermaline 85 4 Zone Full Surface Induction Top, 1 Side, H=700 - H3 - Marine USPHS only M2M (COD 588497)
Where to buy
Cooking Range Line thermaline 854 Zone Full Surface Induction Top, 1 Side, H=700 - H3 - Marine USPHS only M2M
Full Surface Induction Cookers - On Base

Cooking Range Line thermaline 85
4 Zone Full Surface Induction Top, 1 Side, H=700 - H3 - Marine USPHS only M2M

COD 588497

Full Surface Induction Top with generator cabinet, 4 zones, one-side operated with splashback - Marine USPHS (only M2M)

Where to buy
Product registration

Specifications

  • Supply voltage: 440 V/3 ph/60 Hz

    Total Watts: 28 kW

  • External dimensions, Width: 800 mm

    External dimensions, Depth: 850 mm

    External dimensions, Height: 700 mm

    Net weight: 130 kg

    Configuration: One-Side Operated

    Front Plates Power: 7 - 7 kW

    Back Plates Power: 7 - 7 kW

    Front Plates dimensions: 420x370 420x370

    Back Plates dimensions: 320x330 320x330

    Induction Top Dimensions (width): 800 mm

    Induction Top Dimensions (depth): 850 mm

  • Current consumption: 39 Amps

Product Features

Main Features

Overheat protection: the temperature sensor switches off the supply in case of overheating.
The smooth glass-ceramic surface can be quickly and easily cleaned, thus providing maximum hygiene.
All major components may be easily accessed from the front.
Almost the entire surface of the ceramic plate can be used without “dead” spots.
Fast deployment with full heating power immediately.
Low heat dissipation to the kitchen.
The large surface multi-coil induction top offers a substantial increase in pan and pot capacity thanks to the seamless transition between individual heating zones, ideal for à la carte operation.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
9 power levels.
IPX6 water protection.

Construction

Control light for each zone.
Internal frame for heavy duty sturdiness in stainless steel.
6mm ceran glass surface.
3mm top with 3 mm reinforcement in 1.4301 (AISI 304).
Unit constructed according to DIN 18860_2 with 20 mm drop nose top and 120 mm recessed plinth.
