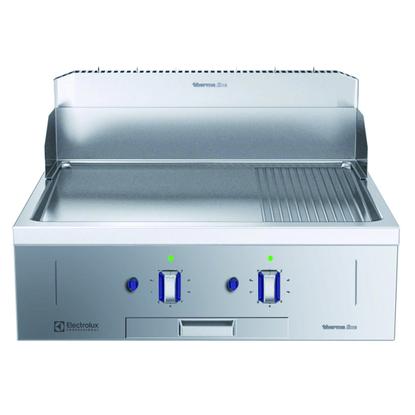

Modular Cooking Range Line thermaline 85 - Full Module Gas Fry Top with Mixed Plate, 1 Side with Backsplash (COD 588541)
Where to buy
Modular Cooking Range Linethermaline 85 - Full Module Gas Fry Top with Mixed Plate, 1 Side with Backsplash
Fry Tops - 2 Zones - Gas

Modular Cooking Range Line
thermaline 85 - Full Module Gas Fry Top with Mixed Plate, 1 Side with Backsplash

COD 588541

Gas Fry Top with smooth and ribbed chrome Plate, one-side operated with backsplash

Where to buy
Register your product

Specifications

  • Gas Power: 20 kW

    Gas Type Option:

    Gas Inlet: 1/2"

  • Cooking Surface Depth: 615 mm

    Cooking Surface Width: 700 mm

    Working Temperature MIN: 110 °C

    Working Temperature MAX: 270 °C

    External dimensions, Width: 800 mm

    External dimensions, Depth: 850 mm

    External dimensions, Height: 250 mm

    Net weight: 120 kg

    Configuration: One-Side Operated;Top

    Cooking surface type: half ribbed/ half smooth

    Cooking surface - material: Chromium Plated mild steel mirror

Product Features

Large drain hole on cooking surface permits the draining of residual cooking juices into a large collector placed under the cooking surface.
Overheat protection: a temperature sensor switches off the supply in case of overheating.
Safety thermostat and thermostatic control.
Stainless steel high splash guards on the rear and sides of cooking surface.
Units have separate controls for each half module of the cooking surface.
Choice of one or two heating zones. An indicator lamp shows operating state of each zone.
All major components may be easily accessed from the front.
Led indication of pilot flame
THERMODUL connection system creates a seamless work top when units are connected to each other thus avoiding soil penetrating vital components and facilitating the removal of units in case of replacement or service.
Electrical ignition powered by battery with thermocouple for added safety.
Metal knobs with embedded hygienic "soft-touch" grip for easier handling and cleaning. The special design of the controls prevents infiltration of liquids or soil into vital components.
Unit constructed according to DIN 18860_2 with 20 mm drop nose top.
Cooking surface in chromium-plated mild steel with non-stick finishing for optimum grilling results.
Internal frame for heavy duty sturdiness in 1.4301 (AISI 304).
Flat surface construction with minimal hidden areas to easily clean all surfaces
2 mm top in 1.4301 (AISI 304).
IPx4 water protection.
Cooking surface 2/3 smooth and 1/3 ribbed.
