Modular Cooking Range Line 900XP 4-Burner Gas Range 10 kW on Oven (COD 391260)
Where to buy

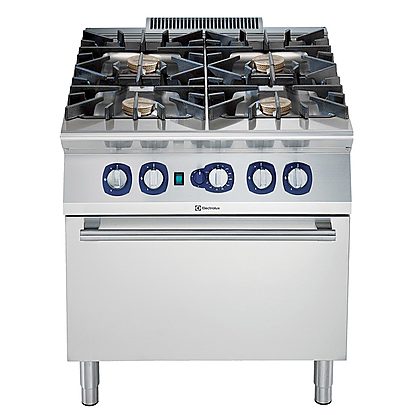

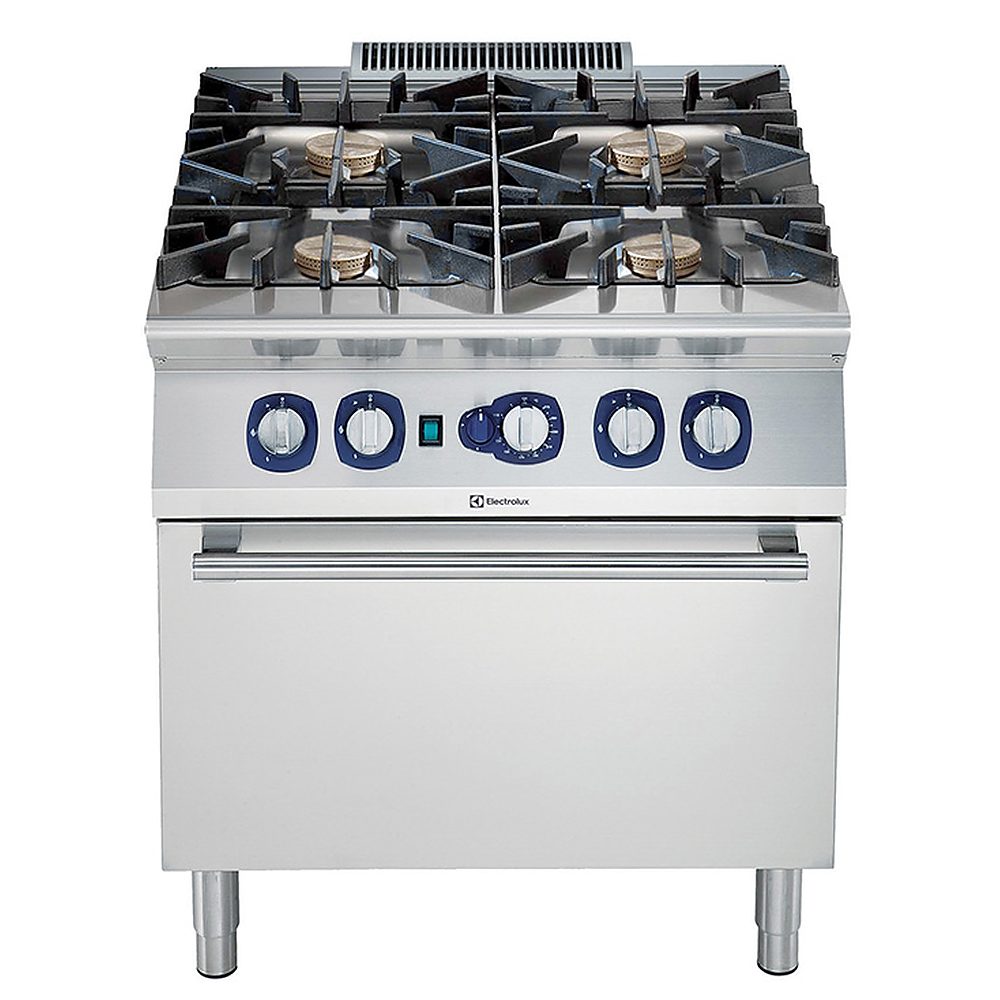

Modular Cooking Range Line900XP 4-Burner Gas Range 10 kW on Oven
Gas Ranges

Modular Cooking Range Line
900XP 4-Burner Gas Range 10 kW on Oven

COD 391260

4-Burner (10 kW each) gas Range on Oven (10,5 kW) - AGA - Aus

Where to buy
Product registration

Specifications

  • Gas Power: 48.5 kW

    Standard gas delivery: Natural Gas

    Gas Type Option: LPG;Natural Gas

    Gas Inlet: 1/2"

  • Oven Heat Input: 8.5 kW

    Oven working Temperature: 120 °C MIN; 280 °C MAX

    Oven Cavity Dimensions (width): 575 mm

    Oven Cavity Dimensions (height): 300 mm

    Oven Cavity Dimensions (depth): 700 mm

    Net weight: 155 kg

    Shipping weight: 138 kg

    Shipping height: 1090 mm

    Shipping width: 1020 mm

    Shipping depth: 900 mm

    Shipping volume: 1 m³

    Front Burners Power: 10 - 10 kW

    Back Burners Power: 10 - 10 kW

    Certification group: N9CG

    Back Burners Dimension - mm Ø 100 Ø 100

    Front Burners Dimension - mm Ø 100 Ø 100

Product Features

Main Features

Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
IPX5 water protection.
Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
Protected pilot light.
The special design of the control knob system guarantees against water infiltration.
Convection oven allows for simultaneous cooking on 2 levels thus reducing cooking times compared to standard static ovens (depending on food type).
Base compartment consists of a convection oven, with ON/OFF switch between static and convection mode, positioned beneath the base plate. Oven chamber to have 2 levels of runners to accomodate 2/1 GN shelves (2 steam pans) and ribbed enamelled steel base plate.
Burners with optimized combustion.
40 mm thick oven door for heat insulation.
The four 10 kW high efficiency burners are available in 100 mm diameter with power regulation from 2.2 kW to 10 kW.
Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
Oven thermostat adjustable from 120 °C to 280 °C.
Control knobs provide smooth, continuous rotation from min to max power level.
Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
IPX5 water protection.
Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
Protected pilot light.
The special design of the control knob system guarantees against water infiltration.
Burners with optimized combustion.
The four 10 kW high efficiency burners are available in 100 mm diameter with power regulation from 2.2 kW to 10 kW.
Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
Oven thermostat adjustable from 120 °C to 280 °C.
40 mm thick oven door for heat insulation.
Base compartment consists of a convection oven, with ON/OFF switch between static and convection mode, positioned beneath the base plate. Oven chamber to have 2 levels of runners to accomodate 2/1 GN shelves (2 steam pans) and ribbed enamelled steel base plate.
Convection oven allows for simultaneous cooking on 2 levels thus reducing cooking times compared to standard static ovens (depending on food type).

Construction

All exterior panels in Stainless Steel with Scotch Brite finishing.
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
AISI 304 stainless steel worktop, 2mm thick.
Unit is 930 mm deep to give a larger working surface area.
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
AISI 304 stainless steel worktop, 2mm thick.
All exterior panels in Stainless Steel with Scotch Brite finishing.
Unit is 930 mm deep to give a larger working surface area.
