Modular Cooking Range Line 900XP 4-Burner Gas Range 10 kW on Gas Oven (COD 391259)
Where to buy
Modular Cooking Range Line900XP 4-Burner Gas Range 10 kW on Gas Oven
Gas Ranges

Modular Cooking Range Line

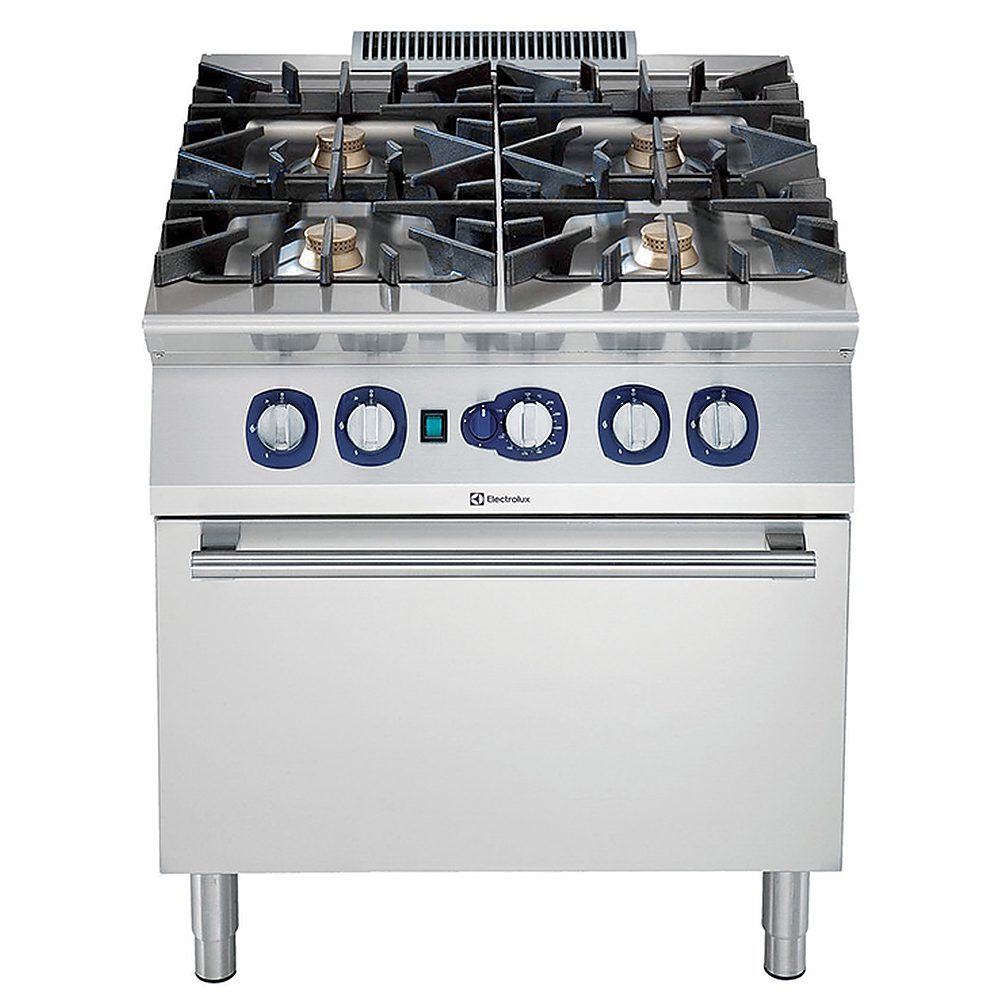

900XP 4-Burner Gas Range 10 kW on Gas Oven

COD 391259

4-Burner gas Range on gas Oven - AGA - Aus

Where to buy
Product registration

Specifications

  • Gas Power: 36.5 kW

    Standard gas delivery: Natural Gas

    Gas Type Option: LPG;Natural Gas

    Gas Inlet: 1/2"

  • Oven working Temperature: 120 °C MIN; 280 °C MAX

    Oven Cavity Dimensions (width): 575 mm

    Oven Cavity Dimensions (height): 300 mm

    Oven Cavity Dimensions (depth): 700 mm

    Net weight: 115 kg

    Shipping weight: 142 kg

    Shipping height: 1080 mm

    Shipping width: 1030 mm

    Shipping depth: 860 mm

    Shipping volume: 0.96 m³

    Front Burners Power: 6 - 6 kW

    Back Burners Power: 6 - 10 kW

    Certification group: N9CG

    Back Burners Dimension - mm Ø 60 Ø 100

    Front Burners Dimension - mm Ø 60 Ø 60

Product Features

Main Features

IPX5 water protection.
Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
Oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans).
Protected pilot light.
Ribbed cast iron oven base plate.
The special design of the control knob system guarantees against water infiltration.
Oven thermostat adjustable from 110 °C to 285 °C or from 120 °C to 280 °C for model 391164.
Gas burners supplied for use with natural or LPG gas, conversion jets supplied as standard.
Base compartment consists of an electric standard oven with 40 mm thick oven door for heat insulation, positioned beneath the base plate.
Burners with optimized combustion.
Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
Control knobs provide smooth, continuous rotation from min to max power level.
Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
IPX5 water protection.
Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
Oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans).
Protected pilot light.
Ribbed cast iron oven base plate.
The special design of the control knob system guarantees against water infiltration.
Gas burners supplied for use with natural or LPG gas, conversion jets supplied as standard.
Burners with optimized combustion.
Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
Base compartment consists of an electric standard oven with 40 mm thick oven door for heat insulation, positioned beneath the base plate.
Oven thermostat adjustable from 110 °C to 285 °C or from 120 °C to 280 °C for model 391164.

Construction

All exterior panels in Stainless Steel with Scotch Brite finishing.
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
AISI 304 stainless steel worktop, 2mm thick.
Unit is 930 mm deep to give a larger working surface area.
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
AISI 304 stainless steel worktop, 2mm thick.
All exterior panels in Stainless Steel with Scotch Brite finishing.
Unit is 930 mm deep to give a larger working surface area.
