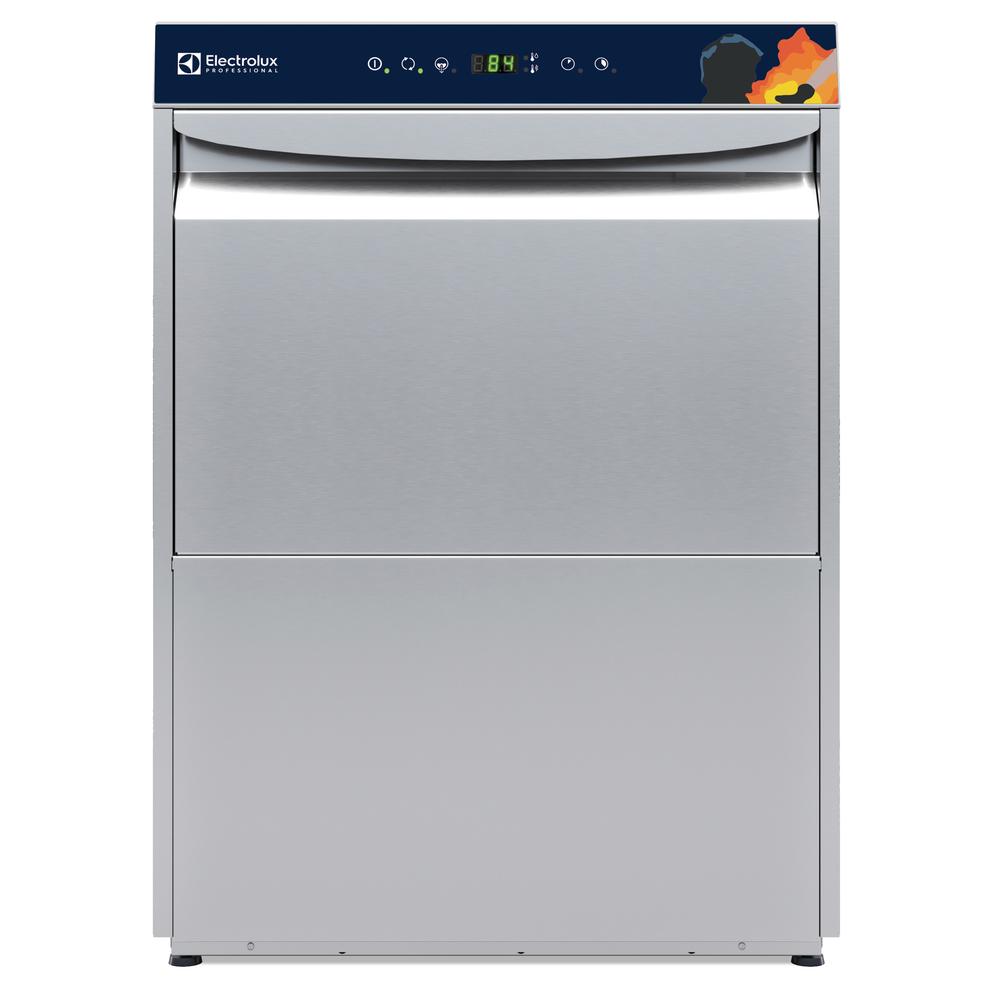

Warewashing Undercounter Dish for Personal Protective Equipment, WASH-SAFE CONTROL, double skin, built-in drain pump, detergent and rinse aid dispensers, Fire Brigade (COD 502756)

Compare Where to buy

green&clean Undercounters - EUCI and EUCAI

Warewashing
Undercounter Dish for Personal Protective Equipment, WASH-SAFE CONTROL, double skin, built-in drain pump, detergent and rinse aid dispensers, Fire Brigade

COD 502756

Undercounter Dishwasher for Personal Protective Equipment (PPE) with WASH-SAFE CONTROL, double skin, built-in drain pump, detergent and rinse aid dispensers, 3 phase, 720d/h, Fire Brigade

Compare

Where to buy

Product registration

Specifications

Electric

Supply voltage: 400 V/3N ph/50 Hz

Convertible to: 230V 3~; 230V 1N~

Default Installed Power: 5.35 kW

Boiler heating elements: 4,5 kW

Tank heating elements: 2 kW

Wash pump size: 0.736 kW
Key Information

Wash temperature: 54°C

Cell dimensions - width: 500 mm

Cell dimensions - depth: 500 mm

Cell dimensions - height: 335 mm

Rinse temperature: 54 °C

External dimensions, Width: 600 mm

External dimensions, Depth: 615 mm

External dimensions, Height: 820 mm

Packaging size(WxDxH): 740x670x1020 mm

Baskets per hour: 40

Dishes per hour: 720

Program Cycle time: 300/480/720
Sustainability

Noise level: 61 dBA
Water

Pressure, min-max: 0.5-7 bar

Water supply temperature*: 50 °C

Drain line size: 20.5mm

Inlet Water supply pressure: 7 - 102 psi (0.5 - 7 bar)

Washing tank capacity (lt): 23

Water consumption per cycle (lt): 0 / 2.5

Boiler Capacity (lt): 12

Documents

Product Features

Main Features

High efficiency air gap (class A) in water inlet circuit to avoid water being siphoned back into the network as a result of a sudden drop in main pressures.

Simple control panel with digital display allows on-site personalization of washing and rinsing cycle times and temperatures as well as precise rinse aid and detergent quantities to suit customer's needs.

Digital read-out keeps operator informed as to temperatures.

Built-in rinse aid and detergent dispenser with automatic initial and continuous cycle loading for perfect result while minimizing service and maintenance needs.

Double skinned insulated wall ensures a low noise level and a reduction in heat loss from the machine.

Washing system endowed with rotating washing arms, high powered wash pump and large capacity boiler for professional washing.

Constant temperature of 84 °C throughout the rinsing cycle regardless of the network's water pressure and temperature.

Green light of "WASH SAFE CONTROL" confirms that items have been rinsed properly.

IPx4 water protection.

Fully automatic self-cleaning cycle avoids the risk of bacteria proliferation.

Solid double skinned counter-balance door with hurt-free handle fully in stainless steel.

Incorporated Soft Start feature to offer additional protection to more delicate items.

4 second (variable) pause after washing and before rinsing ensures that no drops of unclean water will fall on the clean items at the end of the rinsing cycle.

Unique temperature interlock guarantees required temperatures in both the wash and final rinse in case of emergency cold water feeding.

Simple service from the front.

Low noise level.

Slanted wash arms to avoid detergent-filled wash water dropping on clean dishes after the rinsing phase, thus guaranteeing ideal washing results.

Three phase or single phase electrical connection, convertible on-site.

State-of-the-art electronic controls with built-in programming, self-diagnostics for serviceability and automatic interior self-cleaning cycle.

Sustainability

Unit to feature drain pump, rinse aid and detergent dispenser pumps.

Pre-arrangement for HACCP system implementation and Energy Management device.

Construction

Interchangeable wash/rinse arms screw out for simple clean up.

304 stainless steel boiler with higher welding protection to increase resistance to corrosion.

Element protection from dry fire and low water.

Incorporated drain pump to control water level in wash tank draining.

PVC water supply hose with metal connections resistant to high water pressure.

Unit to feature smooth surfaces to facilitate cleaning.

Completely closed on the back by a cover plate.

Front panel, door, wash tank, tank filters, wash arms and rinse arms made in heavy duty anti-corrosive 304 AISI stainless steel.

Large tank filter collects the soil to keep the wash water clean for a longer time and have better washing performance.

Large deep drawn wash tank and internal wash area with round corners and no pipes to avoid dirt built-up.

The boiler drain facilitates the evacuation of stagnant water after long periods of inactivity to ensure a higher level of hygiene.

Detergents and Chemicals (not included)


Code

Description

Code: 0S2092

C11 Detergent for dishwashers; one pack of 2 cans of 5lt.

Code: 0S2093

C13 ECO Detergent for dishwashers; one pack of 2cans of 5lt.

Code: 0S2094

C12 Rinse aid for dishwashers; one pack of 2 cans of 5lt.

Code: 0S2281

C11 Detergent for dishwashers; 1 can of 20lt.

Code: 0S2362

C30 Multipurpose descaler; one pack of 2 cans of 5lt.

Code: 0S2904

C15 ECO Rinse aid for dishwashers; one pack of 2 cans of 5lt.
