ecostore 2 Door Digital Stainless Steel Freezer, 1430lt (-22/-15) - R290 (COD 725371)

Compare Where to buy

ecostore 670 - 1430 liters Digital Freezers (R290)

ecostore
2 Door Digital Stainless Steel Freezer, 1430lt (-22/-15) - R290

COD 725371

2-door Freezer 1430lt, -22-15°C, digital, stainless steel, R290

Compare

Where to buy

Product registration

Specifications

Electric

Supply voltage: 220-240 V/1 ph/50 Hz

Electrical power max.: 0.8 kW
Key Information

Number and type of grids (included): 6 (GN 2/1)

Net Volume: 1135 lt

External dimensions, Width: 1441 mm

External dimensions, Depth: 835 mm

External dimensions, Depth with Doors Open: 1480 mm

External dimensions, Height: 2050 mm

Number and type of doors: 2 Full

Type of external material: Stainless Steel AISI 430

Type of internal material: Stainless Steel AISI 430

Internal panels material: Stainless Steel AISI 430

Number of positions & pitch: 44; 30 mm

Gross capacity: 1430 liter

Type of model: vertical freezer
Refrigeration Data

Control type: Digital

Refrigeration power at evaporation temperature: -30 °C

Operating temperature min.: -22 °C

Operating temperature max.: -15 °C

Operating mode: Ventilated
ISO Certificates

ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001

Type reference/certification group: V2MGBTHC
Sustainability

Refrigerant type: R290

GWP Index: 3

Refrigeration power: 751 W

Refrigerant weight: 145 g

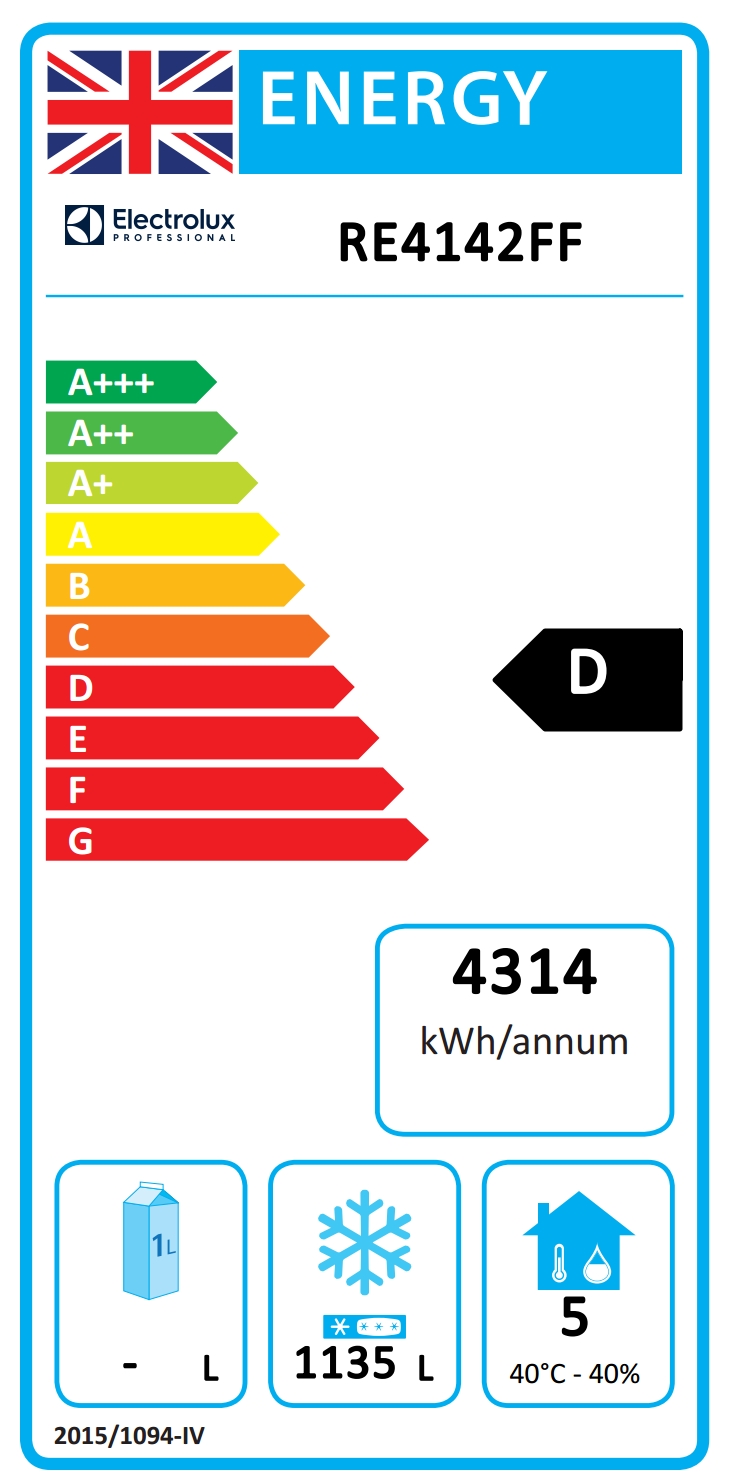

Energy Class (EU Reg. 2015/1094): D

Climate class (EU Reg. 2015/1094): Heavy Duty (5)

Energy Efficiency Index-EEI (EU Reg. 2015/1094): 61,06

Documents

Product Features

Main Features

Automatic defrost.

Freezer model has operating temperatures that can be adjusted from -22 to -15 °C.

Large storage area suitable to contain 2/1 GN grids or shelves on anti-tilt runners.

Right hinged full door.

Cabinet fitted with up to 75 mm thickness of cyclopentane insulation for best insulating performance with 100% environmental protection (thermal conductivity: 0,020 W/m*K).

Hidden evaporator thus guaranteeing higher storage capacity and less corrosion problems.

Internal structure with numerous charging positions available to host grids, ensuring higher net capacity and a greater storage space.

60 mm-thick insulation covering the evaporator can be easily removed with a single operation.

Optimized back to front forced air flow provide even temperature distribution and fast cooling in any conditions.

Equipped with single phase electrical cable and Schuko plug for easy and fast installation.

Tropicalized unit.

Sustainability

Automatic evaporation of the defrosting water by hot gas on the top for energy saving.

Door switch stops the fan when door is opened to avoid cold air exiting the cell, thus saving energy.

Removable triple-chamber balloon magnetic gasket to improve insulation and reduce energy consumption and ease of cleaning.

CFC and HCFC free, highly ecological refrigerant type: R290 (ecological gas in foam: cyclopentane). Hydrocarbon refrigerant gas R290 for the lowest environmental impact (GWP=3), to reduce green house and ozone depletion effects.

User Interface & Data Management

Large digital white-digit display with cabinet temperature display and setting, activation of turbo frost cycle (to rapidly cool warm loads) and possibility to activate manually the defrost cycle.

Easy serviceability thanks to the intuitive control panel with access via app.

Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.

Construction

Lockable door.

Mounted on adjustable Stainless steel feet, with castors as an option.

The rounded internal corners, the easily removable runners and grids allow for ease of cleaning and high hygiene standards.

Easy access to the main components for maintenance.

Stainless steel runners and supports easily disassembled.

Anti-corrosion bottom material avoids any damage that may be caused to the cabinet by aggressive detergents employed to clean the floors.

Doors are self-closing and can be fully opened up to 180°.

AISI 430 stainless steel internal structure and external panels.

Included Accessories


Quantity

Code

Description

Quantity: 6

Code: 881020

2/1GN grey rilsan grid with 2 runners

Detergents and Chemicals (not included)


Code

Description

Code: 0S2881

Code: 0S2883

Code: 0S2884

Code: 0S3257
