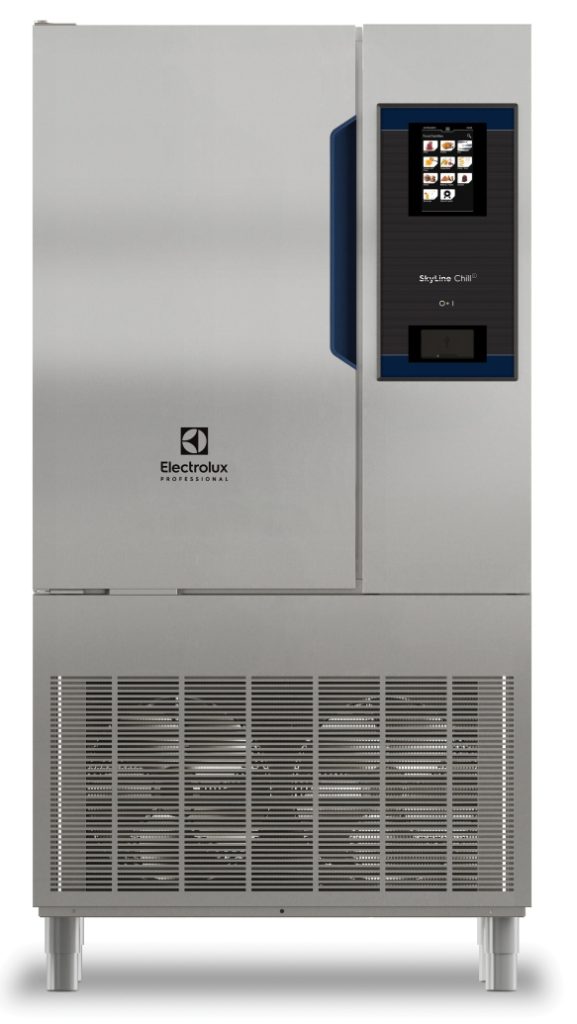

SkyLine ChillS 101 Blast Chiller – 110lbs
SkyLine ChillS Blast Chiller-Freezer 101 (110 lbs)
COD 727738
SkyLine ChillS Blast Chiller Freezer – 110lbs 10 Half Sheet Pans (12″ X 20″) Reach-In
Specifications
Drain line size 1 1/2″ (40 mm)
Clearance: 2 in (5 cm) on sides and back.
Please see and follow detailed installation instructions provided with the unit.
Max load capacity: 110 lbs (50 kg)
Hotel pans: 10 – 12″ X 20″
Half-size sheet pans: 10 – 13″ X 18″
Refrigeration power: 25299 BTU/hr
Condensation temperature: 104°F
Ambient temperature: 89,6°F
Refrigeration power at evaporation temp: 14 °F
Compressor power: 4.2 hp
Defrost type: Electric
ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001
Supply voltage: 208 V/3 ph/60 Hz
Electrical power, default: 4.7 kW
Maximum Over-Current Protection (MOP): 60A
Minimum Circuit Ampacity (MCA): 24A
Heating power: 1.8 kW
External dimensions, Width: 35 1/4″ (895 mm)
External dimensions, Depth: 37″ (939 mm)
External dimensions, Height: 68 1/8″ (1731 mm)
Internal Dimensions (depth): 27 3/4″ / (705 mm)
Internal Dimensions (height): 35 1/2″ / (902 mm)
Internal Dimensions (width): 19 1/14″ / (489mm)
Shipping width: 39 3/8″ (1000 mm)
Shipping depth: 40 9/16″ (1030 mm)
Shipping height: 77 3/16″ (1960 mm)
Shipping weight: 556 lbs (252 kg)
Shipping volume: 71.29 ft³ (2.02 m³)
Type of external material: 304 AISI
Type of internal material: 304 AISI
Approvals ETL C&US;ETL SANITATION;ErgoCert 4*
Current consumption: 16.5 Amps
Refrigerant type: R448A
GWP Index: 1387
Refrigeration power: 7410 W
Refrigerant weight: 2000 g
Documents
***TBD
***TBD
***TBD
***TBD
Request Installation and User Manuals in either English, French-Canadian, or Spanish by emailing Product Manager, Ahtasham Ashraf.
Included Accessories
Quantity
Code
Description
1
880582
3-sensor probe for blast chiller freezer
5
922062
Single 304 stainless steel grid (12″ x 20″)
