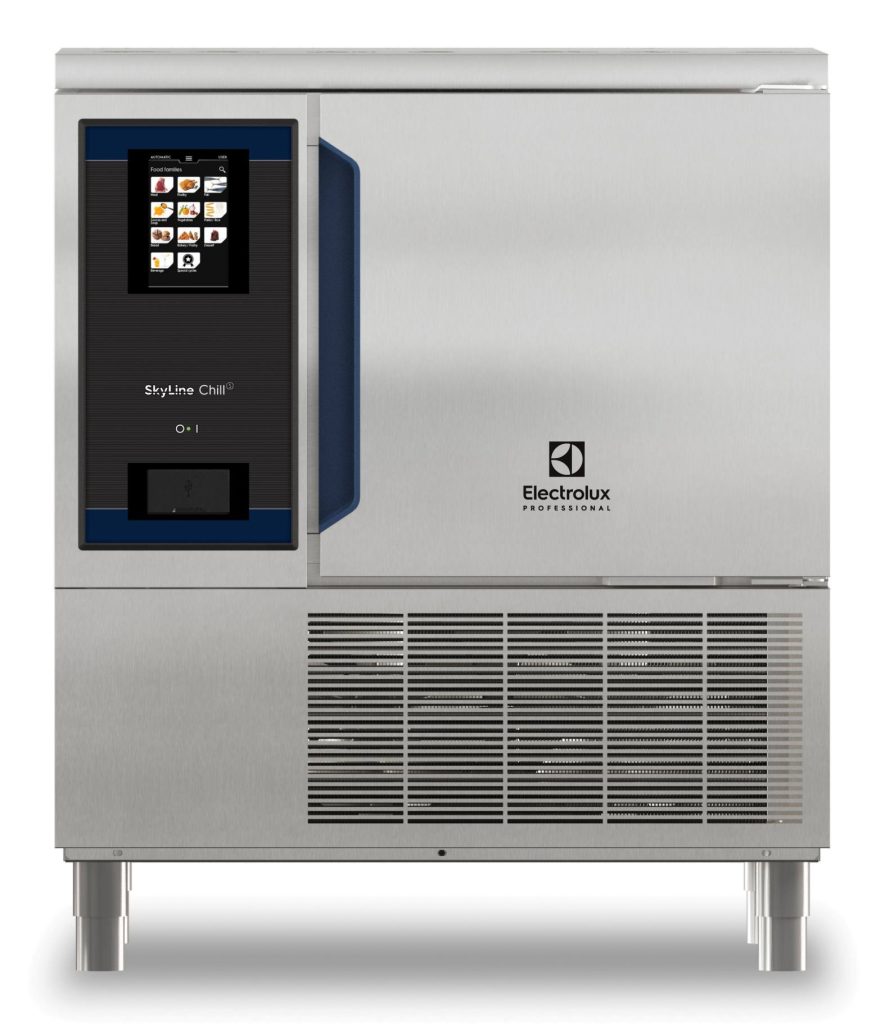

SkyLine ChillS Blast Chiller – 66lbs
SkyLine ChillS Blast Chiller-Freezer 61 (66 lbs)
COD 727731
SkyLine ChillS Blast Chiller Freezer – 66 lbs 6 Half Sheet Pans (12″ X 20″) Reach-In
Specifications
Drain line size 1 1/2″ (40 mm)
Clearance: 2 in (5 cm) on sides and back.
Please see and follow detailed installation instructions provided with the unit.
Max load capacity: 66 lbs (30 kg)
Hotel pans: 6 – 12″ X 20″
Half-size sheet pans: 6 – 13″ X 18″
Refrigeration power: 16320 BTU/hr
Condensation temperature: 104°F
Ambient temperature: 89,6°F
Refrigeration power at evaporation temp: 14 °F
Compressor power: 2.1 hp
Defrost type: Hot gas
ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001
Supply voltage: 208 V/3 ph/60 Hz
Electrical power, default: 3.2 kW
Maximum Over-Current Protection (MOP): 35A
Minimum Circuit Ampacity (MCA): 15A
Heating power: 0.9 kW
External dimensions, Width: 35 5/16″ (897 mm)
External dimensions, Depth: 36 7/8″ (936 mm)
External dimensions, Height: 42 1/2″ (1080 mm)
Internal Dimensions (depth): 27 11/16″ / (703 mm)
Internal Dimensions (height): 17 13/16″ / (452 mm)
Internal Dimensions (width): 17 1/16″ / (433 mm)
Shipping width: 40 15/16″ (1040 mm)
Shipping depth: 39 3/8″ (1000 mm)
Shipping height: 48 1/32″ (1220 mm)
Shipping weight: 423 lbs (192 kg)
Shipping volume: 44.8 ft³ (1.27 m³)
Type of external material: 304 AISI
Type of internal material: 304 AISI
Approvals ETL C&US;ETL SANITATION;ErgoCert 4*
Current consumption: 10 Amps
Refrigerant type: R448A
GWP Index: 1387
Refrigerant weight: 1150 g
Documents
***TBD
***TBD
***TBD
***TBD
Request Installation and User Manuals in either English, French-Canadian, or Spanish by emailing Product Manager, Ahtasham Ashraf.
Included Accessories
Quantity
Code
Description
1
880581
Worktop for 61 blast chiller freezer
1
880582
3-sensor probe for blast chiller freezer
3
922062
Single 304 stainless steel grid (12″ x 20″)
