Digital Undercounter ecostore HP Refrigerated Counter - 3 Door (R290) with top and upstand (COD 710413)

Compare Where to buy

ecostore HP Refrigerated Counters - 3 comp. with top and upstand

Digital Undercounter
ecostore HP Refrigerated Counter - 3 Door (R290) with top and upstand

COD 710413

3-door Refrigerated Counter, -2+10°C, AISI 304 (R290), with splashback

Fast range available in stock. (click to discover more)

Compare

Where to buy

Product registration

Specifications

Electric

Supply voltage: 220-240 V/1 ph/50 Hz

Electrical power max.: 0.22 kW

Compressor power: 1/4 hp
Key Information

Net Volume: 245.4 lt

N° of doors:

External dimensions, Width: 1699 mm

External dimensions, Depth: 700 mm

External dimensions, Height: 950 mm

Internal Dimensions, Width: 1252 mm

Internal Dimensions, Depth: 560 mm

Internal Dimensions, Height: 510 mm

Net weight: 114 kg

Shipping volume: 1.57 m³

Depth with doors open: 1310 mm

Gross capacity: 0 liter
Refrigeration Data

Control type: Digital

Min/Max internal humidity: 40/85

Operating temperature min.: -2 °C

Operating temperature max.: 10 °C

Operating mode: Ventilated

Insulation: 90 mm (Cyclopentane)
ISO Certificates

ISO Standards: ISO 9001; ISO 14001; ISO 45001; ISO 50001

Type reference/certification group: H6FTN3BHC
Sustainability

Refrigerant type: R290

GWP Index: 3

Refrigeration power: 320 W

Refrigerant weight: 65 g

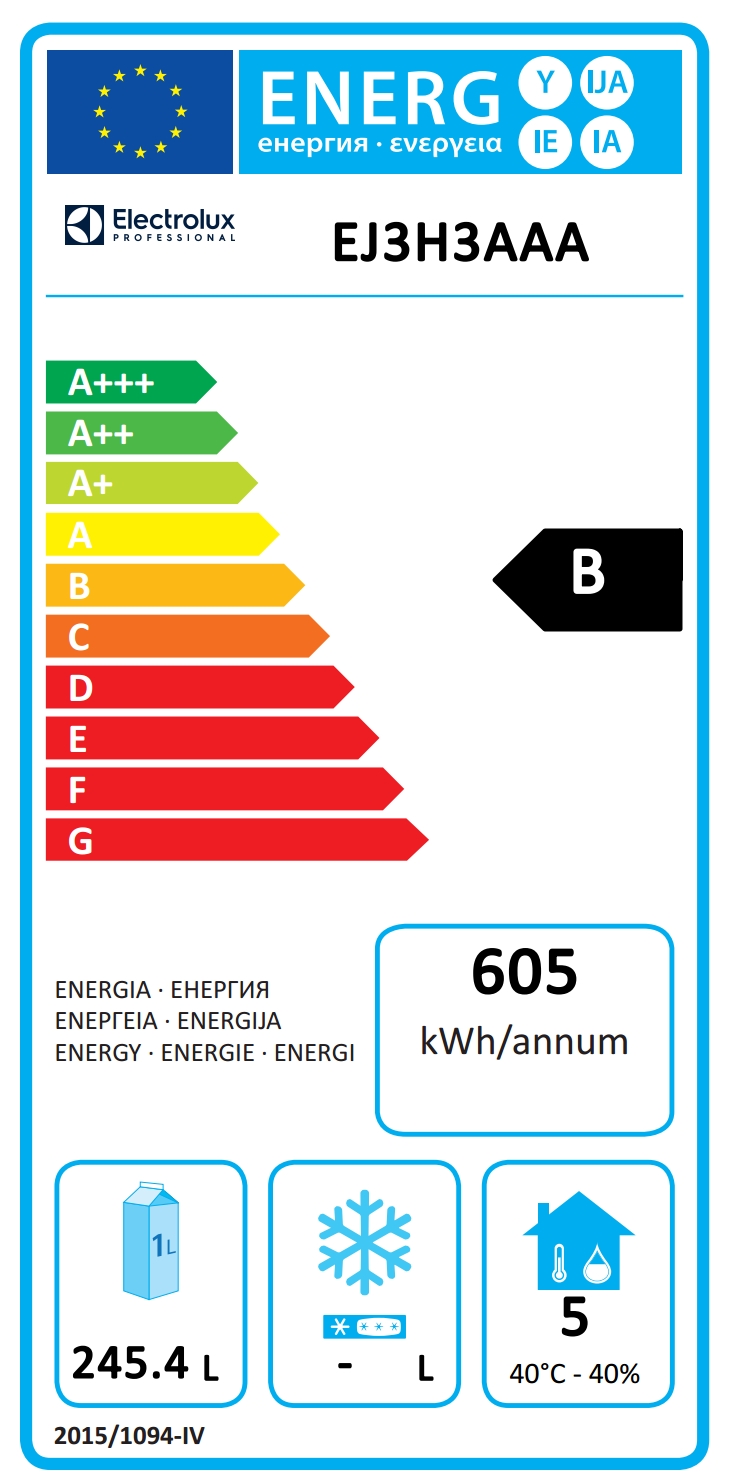

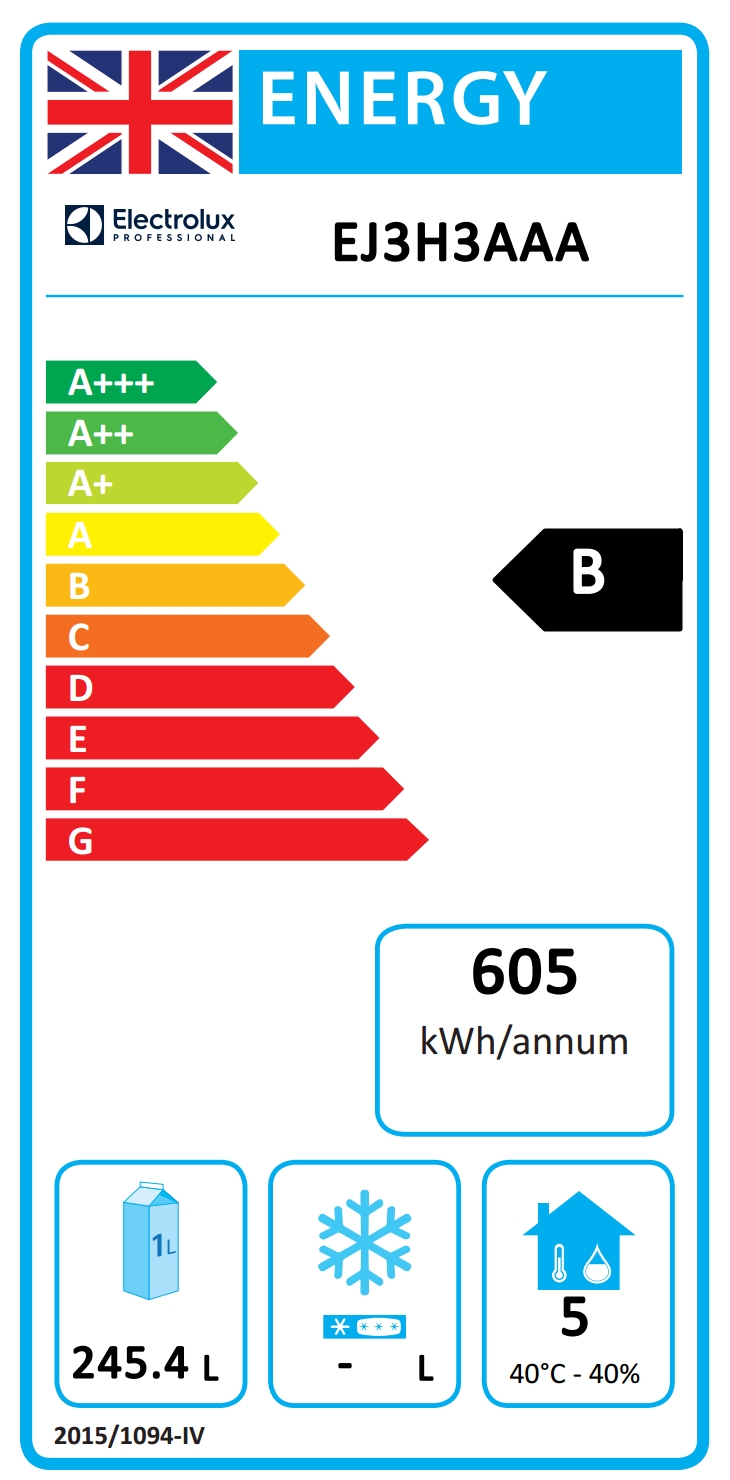

Energy Class (EU Reg. 2015/1094): B

Climate class (EU Reg. 2015/1094): Heavy Duty (5)

Energy Efficiency Index-EEI (EU Reg. 2015/1094): 25,03

Documents

Product Features

Main Features

Digital control panel allowing the easy and precise setting and control of the internal temperature.

Operating temperature can be adjusted from -2 to +10 °C to suit different food storage requirements.

Complies with main international certification bodies and is CE marked.

Kit 1/2 drawers available as accessory.

Completely automatic defrosting and automatic evaporation of defrost water by hot gas.

Forced air cooling system guaranteeing great uniformity of the temperature in the counter and excellent conservation of the food quality.

Kit 1/3 drawers available as accessory.

Tropicalized unit.

User Interface & Data Management

Easy serviceability thanks to the intuitive control panel with access via app.

Integrated RS485 port to facilitate connection to a remote computer and integrated HACCP systems.

Connect the product (with accessory) to the OneConnected Platform via Wi Fi or ethernet connection for a seamless remote experience. Real-time monitoring and analytics, alarm management, HACCP data management, APIs, and advanced features keep your fridge fully under control.

Construction

Built-in compressor to suit operating conditions.

Legs in 304 AISI stainless steel (150 mm high, adjustable in height), with plastic interior.

The door self-closes when opened less than at a 90° angle and is equipped with a door seal to guarantee perfect closure.

High standards of hygiene and ease of cleaning are guaranteed by the rounded internal corners of the cabinet and easily removable runners and grids.

Internal and external doors, front and side panels and 50mm thick removable worktop in 304 AISI stainless steel.

Back panel in galvanized steel.

Included Accessories


Quantity

Code

Description

Quantity: 3

Code: 881109

Kit 1/1 grey rilsan grid and 2 side runners for refrigerated counters
